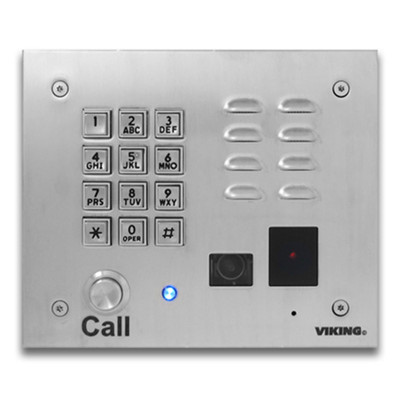

Viking K-1775-3 Video Entry Phone with Keypad & Card Reader

Viking K-1775-3 is a vandal-resistant video entry phone with heavy duty keypad and integrated proximity card reader. K-1775-3 is an analog entry phone for apartments, gate entrances, and commercial spaces. When the user presses the Call button, they get a dial tone, and can then dial any number. The built-in CCTV camera with wide-angle lens gives you analog NTSC surveillance to see who is dialing.

Viking K-1775-3 features a built-in 125 kHz Wiegand proximity card reader for secure entry using compatible cards and keyfobs. The brushed stainless steel faceplate with Torx security screws and louvered speaker and microphone protection make the entry phone vandal resistant. Flush mount the phone using the included rough-in box, or surface mount it using an optional Viking VE-6x7 box.

Viking K-1775-3 Entry Phone Quick Specs:

• Connectivity Type: analog
• Connectors: gel-filled tip and ring connectors
• Proximity Card Reader: 125 kHz 26-bit Wiegand
• Camera: analog NTSC
• Sensor: 1/4" color CMOS
• Lens: 2.1mm, conical pinhole
• Video Resolution: up to 640x480 at 30 fps
• Field of View: 80°H x 60°V, 100° diagonal
• Operating Temperature: -20°F - 130°F
• Dimensions: 5.5" x 6.5" x 2.6"
• Finish: brushed stainless steel
• Mounting: flush or surface
• Surface Mount: requires Viking VE-6x7 box

Viking K-1775-3 Entry Phone Package Contents:

• K-1775-3 phone
• Rough-in box
• 4x T-10 Torx security screws with drive bit
