Yealink AP08 Dante Digital Signal Processor

Yealink AP08 is an advanced digital signal processor (DSP) for professional installed audio systems. Compatible with Dante systems, AP08 supports up to 16 Dante audio inputs and 16 Dante audio outputs, including 8 optimized Dante inputs with dynamic acoustic echo cancellation (AEC), intelligent noise cancellation, and reverberation suppression. It also supports 4 analog audio inputs and 4 analog audio outputs, plus 2 simultaneous USB-B devices. On top of this, the hardware DSP supports AI-based sound optimization for acoustic adaption to different spaces.

In other words, AP08 handles complex, multi-channel conferencing microphone and speaker installations, making the audio streams sound individual and exceptionally clear. For professional-grade audio on conference calls, video calls, virtual meetings, and digital seminars, look to AP08. If you wish to improve audio for meeting participants in the room, the DSP can help establish a sound reinforcement or voice lift system. AP08 also works with Microsoft Teams Rooms as part of a Yealink MVC system, offering native Microsoft Teams integration for gold-standard audio quality on Teams meetings.

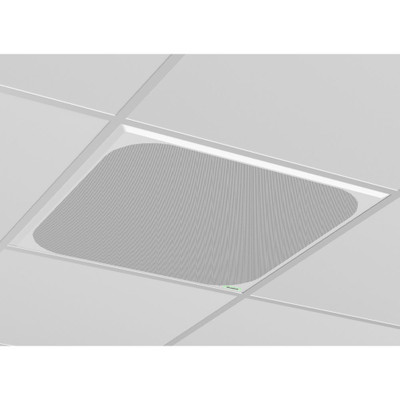

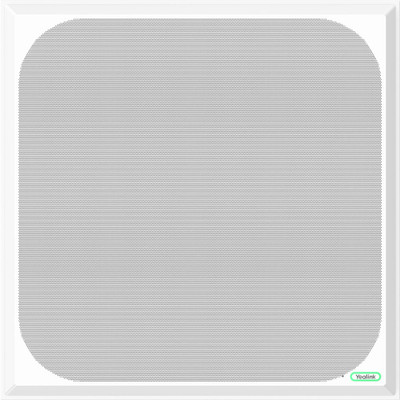

As a pro audio and pro AV solution, AP08 works with other Yealink SkySound devices, like the Yealink CM50 Ceiling Microphone and Yealink CS10-D Ceiling Speaker. When used with Yealink SkySound devices, you can quickly and easily establish a plug-and-play, single-manufacturer audio system. Links with SkySound devices are automatically established and the system customizes itself for room acoustics. AP08 has three LAN ports that can provide PoE+ power to connected devices, making the installation more efficient.

AP08 works with Yealink Room Designer software, which lets you customize the system to suit the specific environment in which it's installed. Configure the audio channel routing, adjust algorithm models, and more. Room Designer allows the DSP to tailor the audio system design based on your inputs, greatly streamlining the deployment process. It then uses auto EQ technology to dynamically adjust the audio system for different meeting room scenarios.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink AP08 Quick Specs:

• Dante Channels:
• Input: 16 (8x AEC channels)
• Output: 16
• Analog Channels:
• Input: 2x RCA, 2x 3-pin
• Output: 2x RCA, 2x 3-pin
• USB Channels:
• Input: 2
• Output: 2
• Physical Connectors:
• RCA: 2x unbalanced input, 2x unbalanced output
• Analog: 2x 3-pin Phoenix input, 2x 3-pin Phoenix output
• GPIO: 1-8 input, 1-8 output
• MGMT: 1x RJ45
• RS232: 1x interface control
• USB: 2x USB-B 3.0
• LAN: 3x RJ45 PSE
• PSE Power Supply: 90 W PoE+

Yealink AP08 Dante Digital Signal Processor Package Contents:

• Digital Signal Processor
• 2.5 m (8.20 ft) USB-A to USB-B 3.0 Cable
• 3 m (9.84 ft) Power Adapter
• 5x 3-pin Male Phoenix Connectors
• 2x 8-pin Male Phoenix Connectors
• 4x Expansion Nuts
• 4x Expansion Screws
• 2x Mounting Ears
• 8x Mounting Ear Screws (4x pre-installed on AP08)
• Quick Start Guide

Yealink AP08 Documentation:

• Yealink AP08 Datasheet
• Yealink AP08 Installation and Connection
