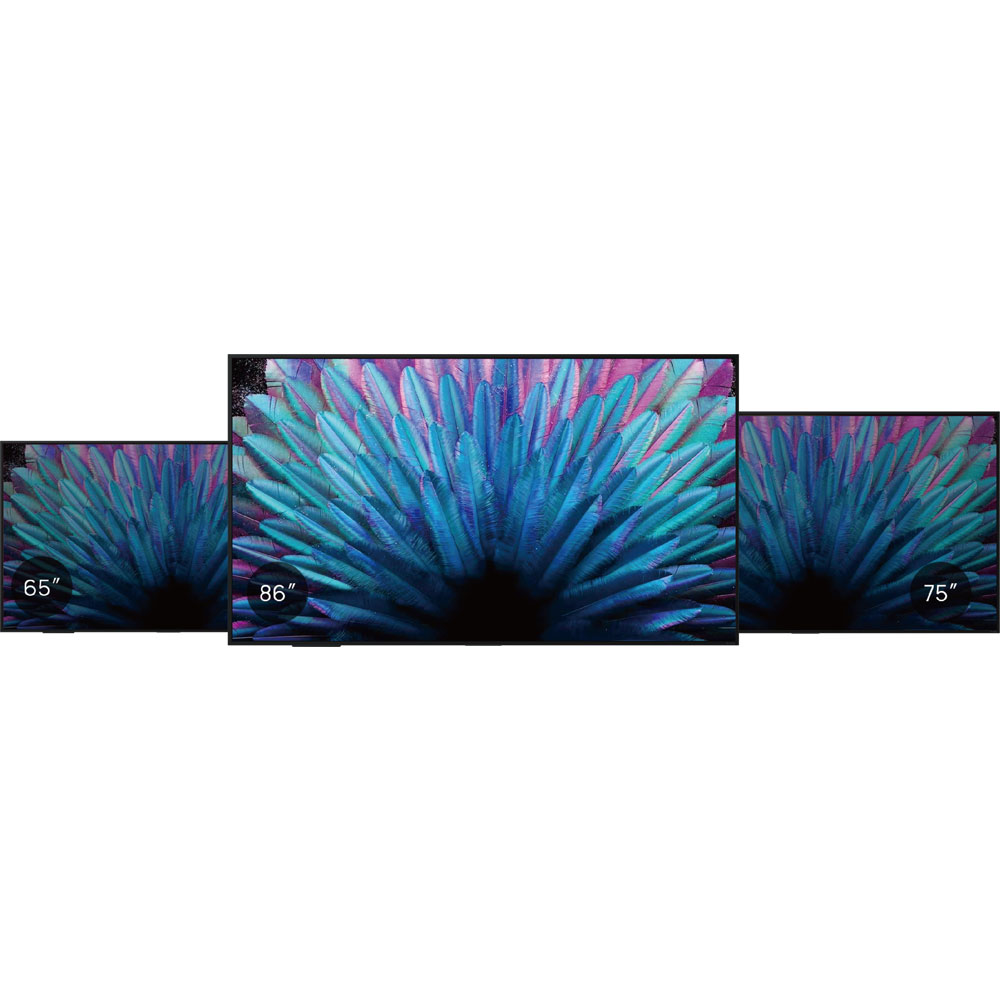

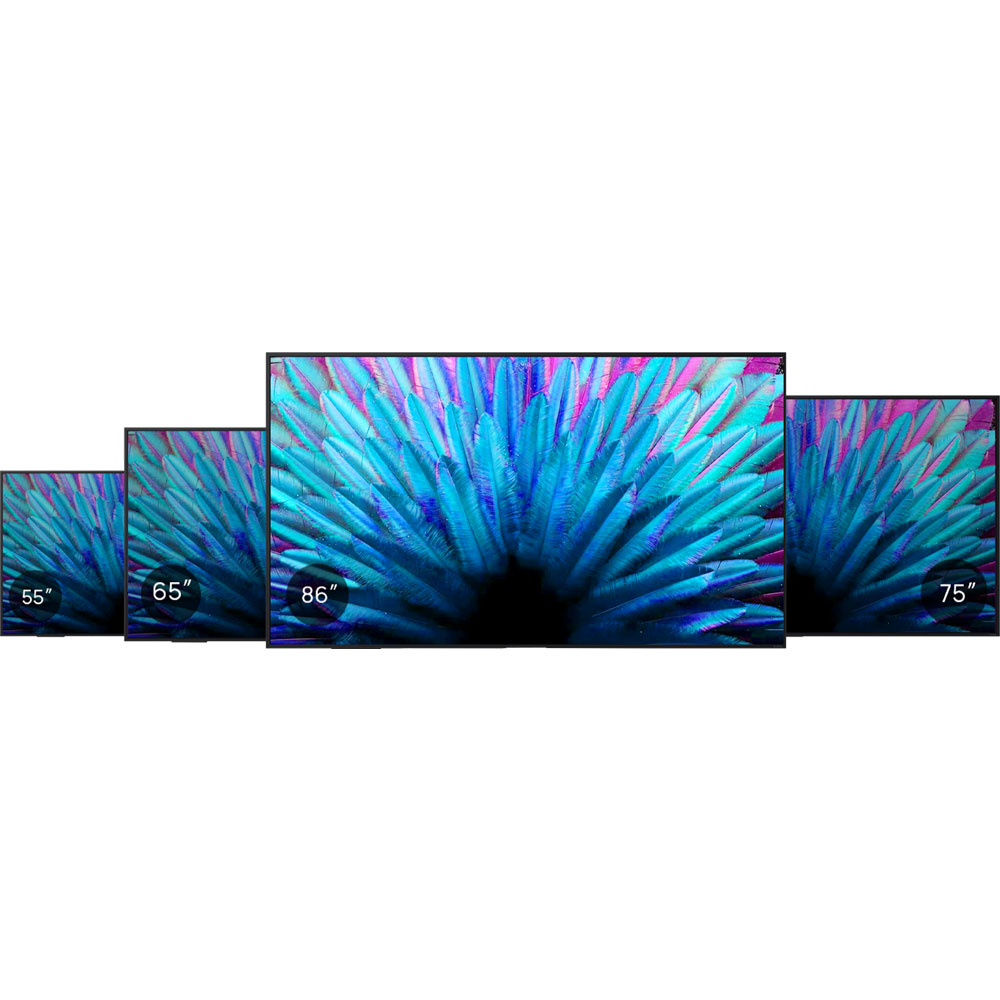

Yealink MeetingDisplay 86 is a 4K Ultra HD display for Microsoft Teams video conferencing in large rooms. MeetingDisplay 86 is built to be used with Yealink Microsoft Teams Rooms (MTR) systems and devices like MeetingBars, UVC86's, and MCore mini-PC's. As a professional display, it's a 86-inch 4K Ultra HD display with integrated 12 W stereo speakers. But it's more than just a display: it's built for MTR integration. Use it as part of a unified Microsoft Teams video conferencing and business collaboration solution. Manage and control it via Yealink Management Cloud Service (YMCS) or Yealink Device Management Platform (YDMP). MeetingDisplay 86 functions seamlessly with all your MTR devices, including system-wide features like wake-up/sleep and more. The display also works for digital signage, making it that much more useful. Use a touch console (not included) to configure the display and MTR system as a whole. Share HD content via the display's HDMI port or wirelessly via AirPlay or Miracast.

MeetingDisplay 86 provides a unified installation solution for the conference room. It comes with a custom mounting bracket for a Yealink MCore 4 Mini-PC (not included). Custom mounting brackets are available separately for MeetingBar A40, MeetingBar A50, and UVC86. These brackets don't require drilling into walls. MeetingDisplay 86 also helps you streamline cabling with a second Ethernet port to connect a MeetingBar or MCore. MeetingDisplay 86 supports Wi-Fi 6 (802.11ax) and Bluetooth 5.1. The package includes an IR remote control.

MeetingDisplay 86 is not a touchscreen display; if you want a collaboration display for Microsoft Teams, see Yealink MeetingBoard 86 Pro (MB86PRO-A02). MeetingDisplay 86 is intended to be wall-mounted via a Yealink MD-WallMount or installed on a Yealink MB-FS-Lift motorized mobile stand. Both installation methods are not included with the display and are available separately.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink MeetingDisplay 86 Quick Specs:

• Operating System (OS): Android 13
• Screen Size: 86 inch
• Display Resolution: 4K Ultra HD (3840 x 2160 px)
• Speakers: 2x 12 W
• Content Sharing:
• Wired: HDMI in
• Wireless: AirPlay, Miracast
• Hardware Interfaces:
• Video: 3x HDMI 2.1 in
• Audio: 1x 3.5 mm stereo out
• USB: 2x USB-A 2.0, 1x USB-B 2.0
• LAN: 2x Gigabit RJ45
• Control: 1x RS232
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: Bluetooth 5.1

Yealink MeetingDisplay 86 Package Contents:

• MeetingDisplay
• Remote Control
• 2x AAA Batteries
• MCore Bracket (for mounting MCore 4 to back of MeetingDisplay)
• 2x Screws
• 4x M6 Screws
• 9.84 ft (3 m) Power Cable
• 9.84 ft (3 m) Ethernet Cable
• 3x Cable Ties
• 5x Cable Organizers (for cable routing)
• Quick Start Guide

Yealink MeetingDisplay 86 Documentation:

• Yealink MeetingDisplay Series Datasheet
• Yealink MeetingDisplay Series Quick Start Guide v1.4
