Yealink MVC S90-C5U Microsoft Teams Rooms on Windows Kit - MVC S90-C5U-004

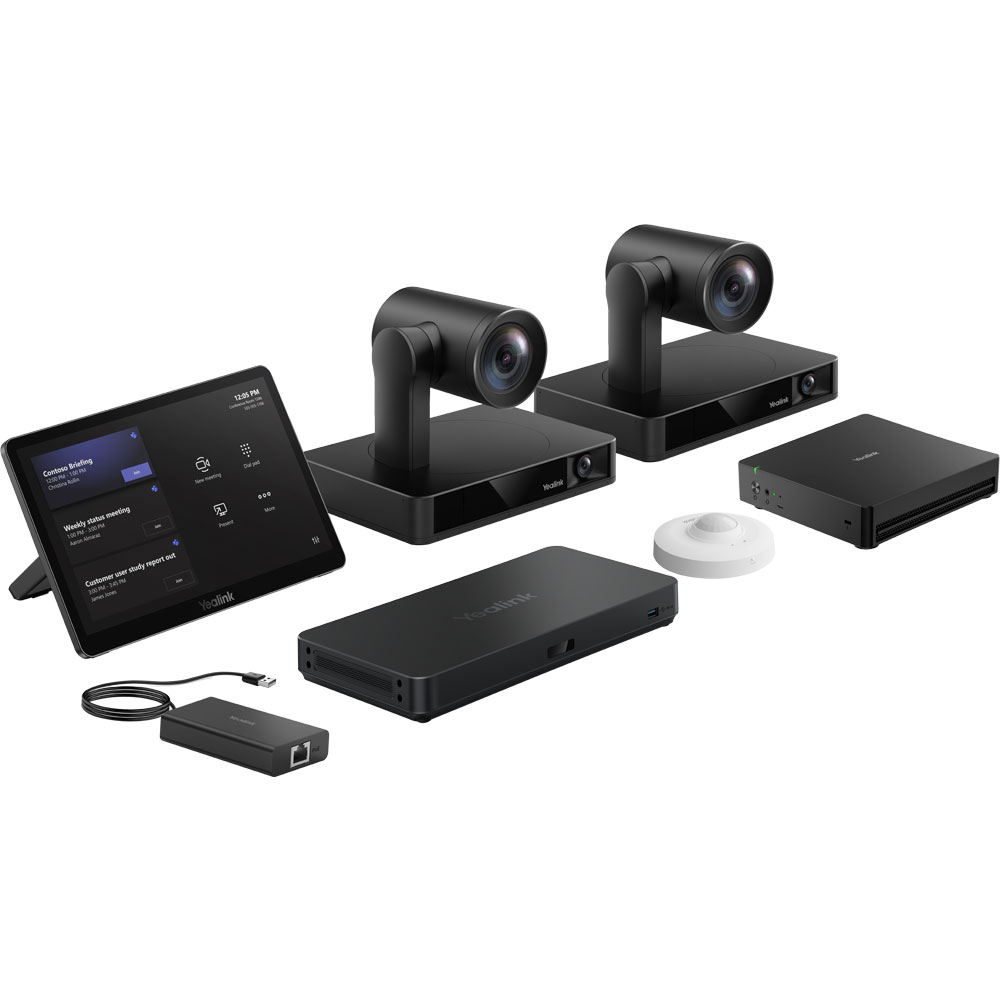

Yealink MVC S90-C5U is a Microsoft Teams Rooms on Windows kit for extra-large meeting rooms that require a multi-camera video conferencing system. MVC S90-C5U includes two UVC86s, MCore 4, MTouch Plus, AVHub, BYOD-Extender, and RoomSensor. When you need a Microsoft Teams video conferencing solution for extra-large rooms, here's your answer.

Yealink UVC86 is an intelligent PTZ camera with 12x optical zoom. This 4K Ultra HD camera supports numerous automatic features like Speaker Tracking and Presenter Tracking. As a professional video conferencing camera, it provides the exceptional detail and performance you need for a premium Microsoft Teams experience. And you get two of them in this bundle. Use the two UVC86 with the included Yealink AVHub, which is a pro AV server that manages simultaneous feeds to and from multiple cameras, microphones, and speakers. AVHub lets you customize the layout, enable multi-speaker tracking, modify the audio and video signals to suit the specific layout of your conference room, and much more. Plus it gives your video conferencing system lots of headroom to scale.

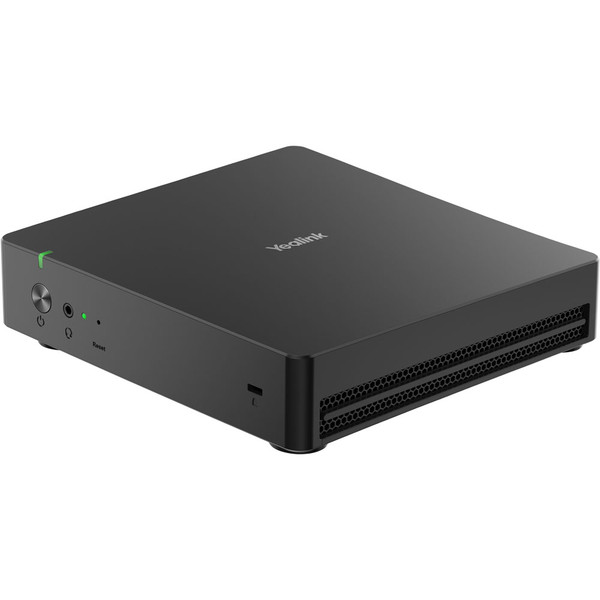

Yealink MCore 4 is an updated Windows mini-PC that runs the Microsoft Teams Rooms app, which comes pre-installed along with Yealink RoomConnect. This Windows 11 IoT Enterprise X64 mini-PC is powered by an Intel Ultra5 125H CPU and has 16 GB of DDR5 RAM and a 256 GB SSD. With three HDMI video outputs, it is simple to connect and gives you a dedicated computer for driving professional-grade Microsoft Teams meetings.

Yealink MTouch Plus is a widescreen 11.6-inch touch console for controlling the video conferencing system. As intuitive to use as a tablet or smartphone, MTouch Plus lets everyone manage video calls from a convenient, desk-mounted device. Yealink BYOD-Extender is a simple adapter, which lets you plug the USB cable into your computer to use the video conferencing systems audio and video equipment. And Yealink RoomSensor is a Bluetooth-enabled sensor for automatic system wake-up, making the whole system effortlessly professional.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink MVC S90-C5U Quick Specs:

Yealink UVC86:

• PTZ Camera:
• Sensor: 8 MP Sony
• Field of View:
• Horizontal: 81°
• Vertical: 50°
• Diagonal: 90°
• PTZ:
• Pan: ±100°
• Tilt: +40° to -90°
• Zoom: 12x optical + 1.7x digital = 20.4x total
• Panoramic Camera:
• Sensor: 8 MP Sony
• Field of View:
• Horizontal: 110°
• Vertical: 78°
• Diagonal: 120°
• Physical Interfaces:
• Audio: 3.5 mm line in
• HDMI: 1x HDMI out
• USB: 1x USB-B, 1x USB-A
• VCH: 1x RJ45 for connecting to BYOD-Extender, audio devices or codec

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink AVHub:

• Device Support:
• Cameras: up to 9x Yealink UVC84/UVC86
• Microphones: up to 8x Yealink VCM34/VCM35/VCM38
• SkySound Microphones: up to 4x Yealink CM20/CS10
• Speakers: up to 4x Yealink MSpeaker II
• Physical Interfaces:
• 6.3 mm: 1x line in, 1x line out
• Codec: 1x codec port
• RCA: 1x RCA in, 1x RCA out
• USB: 2x USB-A, 1x USB-B
• VCH: 7x RJ45

Yealink BYOD-Extender:

• USB Cable: 4.92 ft (1.5 m) USB-A
• Physical Connector: 1x VCH port (RJ45)

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink MVC S90-C5U Microsoft Teams Rooms on Windows Kit Package Contents:

• 2x UVC86 Packages
• MCore 4 Package
• MTouch Plus Package
• AVHub Package
• BYOD-Extender Package
• RoomSensor Package

Yealink MVC S90-C5U Documentation:

• Yealink MVC S90-C5U Datasheet
