Yealink MVC S90 Microsoft Teams Rooms on Windows Kit for Extra-Large Rooms - MVC S90-C5-007

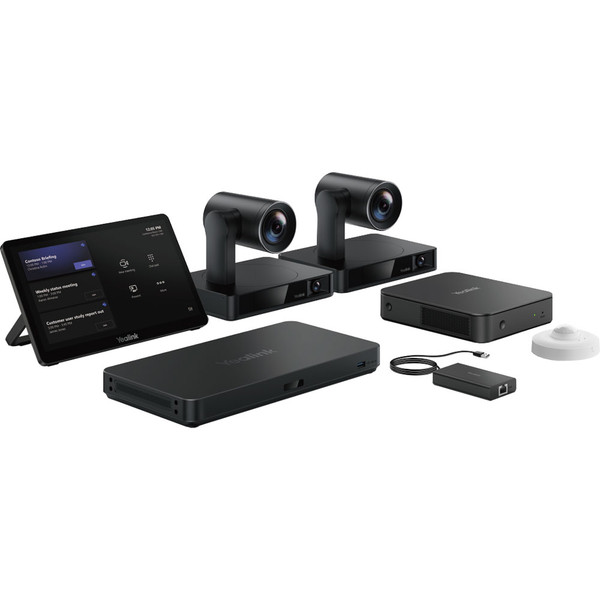

Yealink MVC S90 is a packed kit for establishing a native Microsoft Teams video conferencing system in extra-large meeting rooms and training rooms. MVC S90-C5-007 includes two Yealink UVC86 Video Conferencing Cameras, a Yealink MTouch Plus Touch Panel, a Yealink AVHub, a Yealink MVC-BYOD-Extender, two Yealink WPP30 Wireless Presentation Pods, a Yealink RoomSensor, and a Yealink MCore Pro Mini-PC.

UVC86 is a dual-eye intelligent video conferencing camera that can take video at up to 4K Ultra HD resolution. It uses its dual-camera design works in conjunction with its built-in smarts to enable highly accurate and speedy auto-framing, speaker tracking, and presenter tracking. As a PTZ camera, it offers 12x lossless optical zoom, perfect for picking out faces in large groups. The kit includes two UVC86 cameras. Having multiple cameras lets you have general coverage while getting natural detail on participants' faces. Connect the cameras to AVHub, an audio/video processor for meeting rooms. AVHub offloads from the meeting room computer the processing of the feeds for cameras, speakers, and microphones. It also serves to streamline installation, leaving your meeting room clutter-free, even if you're using many peripherals. A versatile and scalable device, AVHub supports up to 9 cameras, up to 8 microphones, and up to 4 speakers. You can use it with compatible third-party microphones, including models by Biamp, Q-SYS, and Shure.

MTouch Plus is a large 11.6-inch touch panel. It serves as the control console for the meeting room, letting users have a simple, intuitive interface for scheduling, initiating, and managing meetings, adjusting cameras, and more. MTouch Plus displays the familiar Microsoft Teams UI, reducing cross-device friction and learning time for all users. As an always-available controller for the meeting room, it pairs with MCore Pro, which acts as an always-available computer to run the meeting software. Coming with the Microsoft Teams Rooms app pre-loaded, MCore Pro is a mini-PC with specs chosen for optimal performance when powering video conferences.

WPP30 is a plug-and-play dongle for enabling 4K Ultra HD content sharing with just a press of a button. The kit includes two WPP30 pods to help more participants share content. RoomSensor is a passive infrared (PIR) sensor that enables automatic system wake-up and will be useful for monitoring environmental conditions. MVC-BYOD-Extender is a USB adapter that lets you use your video conferencing equipment with a range of platforms and services, which means you won't face lock-in.

Yealink MVC S90-C5-007 is Yealink 1106983.

Yealink MVC S90-C5-007 Quick Specs:

Yealink UVC86:
  • PTZ Camera:
    • Sensor: 8 MP Sony
    • Field of View:
      • Horizontal: 81°
      • Vertical: 50°
      • Diagonal: 90°
    • PTZ:
      • Pan: +100° to -100°
      • Tilt: +40° to -40°
      • Zoom: 12x optical, 1.7x digital
  • Panoramic Camera:
    • Sensor: 8 MP Sony
    • Field of View:
      • Horizontal: 110°
      • Vertical: 78°
      • Diagonal: 120°
  • Physical Connectors:
    • HDMI: 1x HDMI out
    • USB: 1x USB-B 3.0, 1x USB-A 2.0
    • RJ45: 1x for audio devices, BYOD extender or codec
    • Power: 1x power port
    • Security: 1x security lock slot
Yealink MTouch Plus:
  • Display: 11.6 in (1920 x 1080 px) capacitive touchscreen
  • Bluetooth: 5.2
  • Wi-Fi: 802.11 ax
  • Physical Connectors:
    • Headset: 1x 3.5 mm
    • USB-A: 2x USB-A (1x connects to WPP30)
    • USB-C: 2x USB-C
    • RJ45: 1x connects to MCore Pro, 1x Ext Touch Port
  • Adjustable Bracket Angle: 30° to 70°
Yealink AVHub:
  • Device Support:
    • Cameras: up to 9x Yealink UVC86/UVC86 Cameras
    • Microphones: up to 8x Yealink VCM34/VCM38 Microphone Arrays
    • Speakers: up to 4x Yealink MSpeaker II Sound Bars
  • Physical Connectors:
    • USB: 1x USB-A (front), 1x USB-A (back), 1x USB-B
    • Codec: 1x codec port
    • VCH: 7x RJ45
    • RCA: 1x RCA in, 1x RCA out
    • 6.3 mm: 1x line in, 1x line out
    • Power: 1x power supply port
Yealink MVC-BYOD-Extender:
  • USB Cable: 1.5 m (4.92 ft) USB-A 2.0
  • Physical Connector: 1x VCH port (RJ45)
Yealink WPP30:
  • Resolution: up to 4K Ultra HD @ 30 fps
  • Interface: USB-C (USB-C to USB-A adapter included)
  • Wi-Fi: 802.11 ax
  • Bluetooth: 5.0
  • Dimensions:
    • Height: 0.63 in
    • Width: 1.50 in
    • Depth: 8.66 in
  • Weight: 75 g
Yealink RoomSensor:
  • Detection Technology: passive infrared (PIR)
  • PIR Detection Angle: 120°
  • PIR Coverage (9.8 ft Mounting Height):
    • Major Motion: 19.7 ft
    • Minor Motion: 9.8 ft
  • Bluetooth: 5.2
  • Bluetooth Range: up to 100 ft
  • Durability Rating: IP20
  • Dimensions:
    • Diameter: 3.75 in
    • Height: 1.42 in
Yealink MCore Pro:
  • CPU: Intel i5-1135G7 (11th gen)
  • RAM: 8 GB (2 x 4 GB) DDR4
  • Storage: 128 GB SSD
  • Wi-Fi: 802.11 ax
  • Bluetooth: 5.2
  • Physical Connectors:
    • HDMI: 3x output
    • MTouch: 1x RJ45
    • USB: 4x USB-A 3.0
    • Ethernet: 1x Gigabit RJ45
    • Power: 1x power port
    • Security: 1x security lock slot

Yealink MVC S90-C5-007 Microsoft Teams Rooms System Package Contents:

2x Yealink UVC86s:
  • UVC86 Camera
  • 2.5 m USB Cable
  • 7.5 m Ethernet Cable
  • Power Adapter
  • VCR20 Remote Control
  • 2x AAA Batteries
  • Velcro
  • 5x Cable Ties
  • Mounting Bracket and Accessories
  • Quick Start Guide
Yealink MTouch Plus:
  • MTouch Plus Touch Panel
  • Mounting Bracket
  • Double-Coating Tape
  • USB-C Cable (with HDMI Adapter)
  • 7.5 m (24.61 ft) Ethernet Cable
Yealink AVHub:
  • AVHub
  • 2.5 m USB Cable
  • 3 m Ethernet Cable
  • Quick Start Guide
Yealink MVC-BYOD-Extender:
  • MVC-BYOD-Extender with 1.5 m USB Cable
  • 7.5 m Ethernet Cable
  • 2x Velcro
  • Quick Start Guide
2x Yealink WPP30s:
  • WPP30 Pod
  • Quick Start Guide
Yealink RoomSensor:
  • RoomSensor
  • Battery
  • 3M Adhesive Tape
  • 5x PIR Blocking Stickers
  • Screws
Yealink MCore Pro:
  • MCore Pro Mini-PC
  • Bracket
  • 3x 1.8 m HDMI Cables
  • 2x Velcro
  • Power Adapter
  • Screwdriver
  • 2x M3x8 Screws
  • 4x Expansion Screws
  • 4x Machine Screws
  • Quick Start Guide

Yealink MVC S90-C5-007 Documentation:
