Yealink MVC860 Microsoft Teams Video Conferencing System for Medium to Large Rooms - MVC860-C3-211

The Yealink MVC860-C3-211 has been phased out and is no longer available for purchase. The recommended replacement is the Yealink MVC860-C5-000.

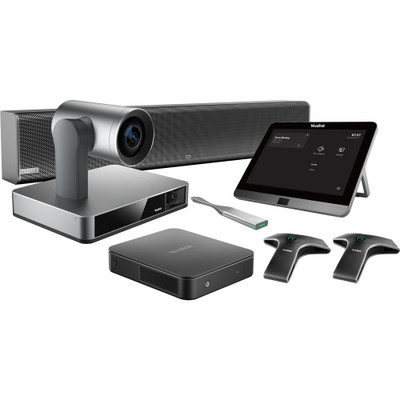

Yealink MVC860 is a Microsoft Teams Certified video conferencing system for professional video calls in medium to large rooms. Yealink MVC860-C3-211 has been updated to include a more powerful Yealink MCore Pro Mini-PC. The package also includes one Yealink UVC86 Camera, one Yealink MTouch II Touch Panel, one MSpeaker II Soundbar, two Yealink VCM34 Wired Microphone Arrays, and one Yealink WPP20 Wireless Presentation Pod. The system natively integrates with Microsoft Teams, giving you simple, seamless installation with a first-class experience.

Yealink UVC86 is an intelligent camera designed for video conferencing. Actually, it's two cameras in one device: a PTZ camera that offers 12x optical zoom and a Panoramic cameras that captures wide-angle views. Both use 8 MP Sony sensors for exceptionally detailed video. Together, you get superb coverage of larger spaces. And the built-in intelligence enables advanced features like automatic framing, and speaker/presenter tracking. MTouch II is an 8-inch tablet that gives the meeting room a dedicated control center. It displays the familiar Microsoft Teams interface for a frictionless experience.

MSpeaker II is a soundbar specifically designed for conference calls. It enhances voices, so everyone will be able to hear voices clearly. The package includes two VCM34 wired microphone arrays, which each have 360° voice pickup out to 20 feet. Using the microphones enables every participant to be heard clearly. WPP20 is a plug-and-play USB dongle with one button: plug it in, press the button, and you're sharing HD content wirelessly. MCore Pro is a powerful mini-PC with updated specs. It runs the meeting software, so you always have excellent performance. It comes with the Microsoft Teams Rooms app and Yealink RoomConnect already installed.

Yealink MVC860-C3-211 is Yealink 1106965.

Yealink MVC860-C3-211 Quick Specs:

Yealink UVC86:
  • PTZ Camera:
    • Sensor: 8 MP Sony
    • Field of View:
      • Horizontal: 81°
      • Vertical: 50°
      • Diagonal: 90°
    • PTZ:
      • Pan: +100° to -100°
      • Tilt: +40° to -40°
      • Zoom: 12x optical, 1.7x digital
  • Panoramic Camera:
    • Sensor: 8 MP Sony
    • Field of View:
      • Horizontal: 110°
      • Vertical: 78°
      • Diagonal: 120°
  • Physical Connectors:
    • HDMI: 1x HDMI out
    • USB: 1x USB-B 3.0, 1x USB-A 2.0
    • RJ45: 1x for audio devices, BYOD extender or codec
    • Power: 1x power port
    • Security: 1x security lock slot
Yealink MTouch II:
  • Display: 8 in (1280 x 800 px) capacitive touchscreen
  • Physical Connectors:
    • Headset: 1x 3.5 mm
    • USB-A: 1x connects to WPP20, 1x connects to USB audio device
    • USB-C: 1x connects to PC for wired sharing
    • RJ45: 1x connects to MCore (MTouch II is powered by MCore)
  • Adjustable Bracket Angle: 28° to 50°
Yealink MSpeaker II:
  • Bluetooth: yes (for future use)
  • Physical Connectors:
    • VCH: 1x RJ45 PoE
    • Audio: 1x 3.5 mm line-in
  • PoE: 802.3 af
  • Dimensions:
    • Height: 3.39 in
    • Width: 19.69 in
    • Depth: 2.36 in
Yealink VCM34:
  • Voice Pickup: 20 ft, 360°
  • Physical Connectors:
    • RJ45: 1x for Ethernet and power, 1x for cascading
  • PoE: 802.3 af
  • Dimensions:
    • Height: 1.48 in
    • Length: 6.75 in
    • Width: 6.65 in
Yealink WPP20:
  • Resolution: up to 1080p Full HD (1920 x 1080 px) @ 30 fps
  • Physical Interface: USB-A 2.0
  • Wi-Fi: 802.11 ac
  • Supported Operating Systems: Windows 7/8/10, macOS 10.10+
Yealink MCore Pro:
  • CPU: Intel i5 (11th gen)
  • RAM: 8 GB (2 x 4 GB)
  • Storage: 128 GB SSD
  • Wi-Fi: yes
  • Bluetooth: yes
  • Physical Connectors:
    • HDMI: 3x video output
    • MTouch II: 1x RJ45
    • USB: 4x USB-A 3.0
    • Ethernet: 1x Gigabit RJ45
    • Power: 1x power port
    • Security: 1x security lock slot

Yealink MVC860-C3-211 Microsoft Teams Rooms System Package Contents:

Yealink UVC86:
  • UVC86 Camera
  • 2.5 m USB Cable
  • 7.5 m Ethernet Cable
  • Power Adapter
  • VCR20 Remote Control
  • 2x AAA Batteries
  • Velcro
  • 5x Cable Ties
  • Mounting Bracket and Accessories
  • Quick Start Guide
Yealink MTouch II:
  • MTouch II Touch Panel
  • 7.5 m Ethernet Cable
  • USB-C Cable with HDMI Adapter
  • Mounting Bracket and Accessories
  • Screwdriver
  • Quick Start Guide
Yealink MSpeaker II:
  • MSpeaker II Soundbar
  • Power Adapter
  • 3 m 3.5 mm Cable
  • Wall Mount Bracket
  • Quick Start Guide
2x Yealink VCM34:
  • VCM34 Microphone
  • 3 m Ethernet Cable
  • Silicone Pad
  • Quick Start Guide
Yealink WPP20:
  • WPP20 Wireless Presentation Pod
  • USB-C Adapter
  • Quick Start Guide
Yealink MCore Pro:
  • MCore Pro Mini-PC
  • Bracket
  • 3x 1.8 m HDMI Cables
  • 2x Velcro
  • Power Adapter
  • Screwdriver
  • 2x M3x8 Screws
  • 4x Expansion Screws
  • 4x Machine Screws
  • Quick Start Guide

Yealink MVC860-C3-211 Documentation:
