The Yealink MVC900 II has been phased out and is no longer available for purchase. The direct replacement is Yealink MVC940.
Yealink MVC900 II is a certified solution for Microsoft Teams — professional video conferencing in large to extra large rooms with 15 to 30 participants. MVC900 II comes with a Yealink MTouch II Touch Display, two Yealink UVC80 Cameras, two Yealink WPP20 Wireless Presentation Pod, Yealink Camera Hub and Yealink MCore II Mini PC.
Yealink MTouch II is an 8-inch tablet for simple, centralized control of a Microsoft Teams meeting — with HD touchscreen display and integrated stand. It presents the user with the familiar Teams interface — seamless experience across media. MTouch II lets you share content, manage meetings and much more — right from the table. WPP20 is a plug and play USB presentation pod with Wi-Fi support for one touch 1080p Full HD sharing content wirelessly — ultra convenient.
Yealink UVC80 is a USB camera with 1080p Full HD sensor — exceptional detail. It is a PTZ camera with 12x optical zoom, 200° panning range and 60° tilting range. Camera Hub supports up to 9 Yealink cameras for a multi-camera deployment — complete coverage of extra large spaces. Yealink MCore II is a powerful mini PC with Intel Core i5 processor and 128 GB SSD with the Microsoft Teams Rooms app installed — ready to go out of the box.
© 2021 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.
Yealink MVC900 II Quick Specs:
Yealink MTouch II Touch Display:
- Display: 8 in (1280 x 800 px) capacitive touchscreen
- Physical Connectors:
- 3.5 mm to headset
- USB-A to WPP20 Wireless Presentation Pod (not included)
- USB-C to PC for wired content sharing
- USB-A to a USB audio device
- VCH to MCore Mini-PC (included)
Yealink UVC80 Camera:
- Video Resolution: up to 1080p Full HD @ 60 fps
- Pan: 200°
- Tilt: 60°
- Zoom: 12x optical
- Field of View (diagonal): 78.5°
- Physical Connectors:
- 3.5 mm to audio output device
- 3.5 mm to audio input device
- USB-A to DD10 USB Dongle (not included)
- RJ45 to VCM34 Microphone Array (not included)
- Power port
- Security slot
Yealink WPP20 Wireless Presentation Pod:
- Connectivity: USB-A 2.0
- Wi-Fi: 802.11 ac
- Video Resolution: up to 1080p Full HD @ 30 fps
Yealink Camera Hub:
- Camera Support: up to 9 cameras
- Physical Connectors:
- 2x USB-A 3.0
- Camera port
- RCA to audio input device
- RCA to MSpeaker II Soundbar (not included)
- RJ45 to VCM34 Microphone Array (not included)
- Ethernet
- Power port
- Security slot

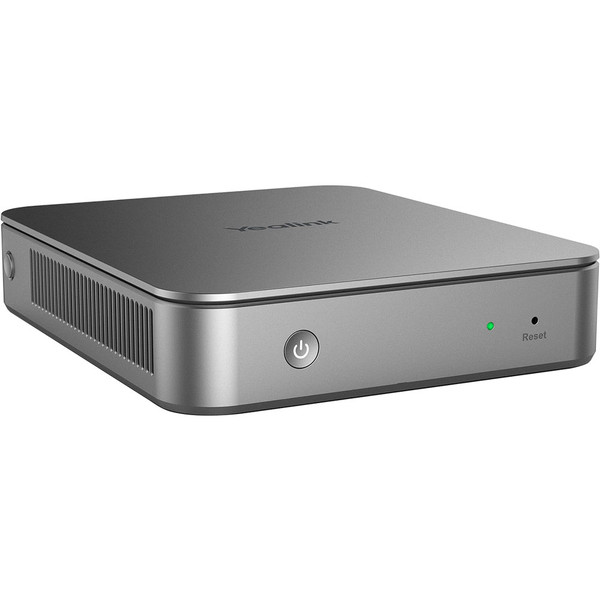

Yealink MCore II Mini PC:
- Operating System: Windows 10 IoT Enterprise
- Software: Microsoft Teams Rooms
- CPU: 8th-Gen Intel Core i5-8265U
- SSD: 128 GB
- RAM: 8 GB (2x 4 GB)
- Wi-Fi: yes
- Bluetooth: yes
- Physical Interfaces:
- 2x HDMI to display(s)
- 4x USB-A 3.0 to USB devices/cameras
- VCH to MTouch II
- Gigabit Ethernet
- Power port
Yealink MVC900 II Microsoft Teams Video Conferencing Kit Package Contents:
Yealink MTouch II Touch Panel:
- MTouch II
- 7.5 m Ethernet Cable
- USB-C Cable with HDMI Adapter
- Screws and Screwdriver
- Quick Start Guide
2x Yealink UVC80 Cameras:
- UVC80
- 2.5 m USB Cable
- 7.5 m Ethernet Cable
- Power Adapter
- VESA Accessory
- VCR20 Remote Control
- 2x Velcro
- 5x Cable Ties
- Camera Lens Privacy Cover
- Mounting Bracket and Accessories
- Quick Start Guide
2x Yealink WPP20 Wireless Presentation Pods:
- WPP20
- USB-C Adapter
- Quick Start Guide
Yealink Camera Hub:
- Camera Hub
- USB to Ethernet Adapter
- 7.5 m Ethernet Cable
- 5x Cable Ties
- 3 m RCA to 3.5 mm Audio Cable
- Power Adapter
- Quick Start Guide
Yealink MCore II Mini PC:
- MCore II
- Bracket
- 2x 1.8 m HDMI Cable
- 2x Velcro
- Power Adapter
- Screwdriver and Screws
- Quick Start Guide
