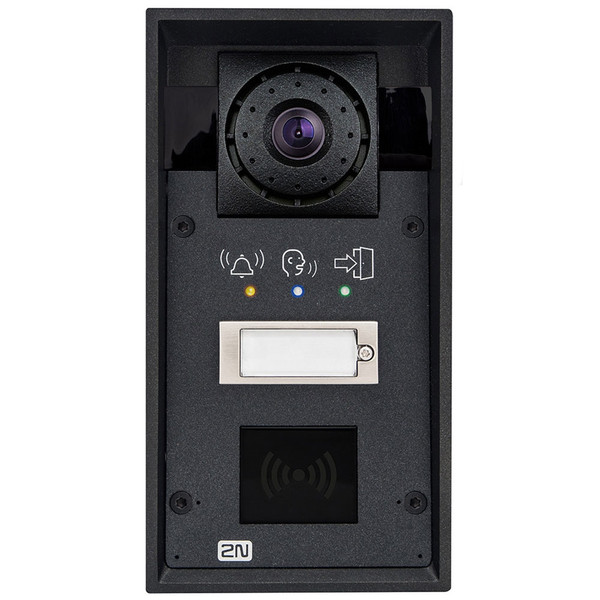

2N Helios IP Force IP69K Intercom, 1 Button, HD Camera, Pictograms, RFID Ready - 01334-001

No reviews yet Write a Review
$1,599.00
SKU:
01334-001
Condition:
New
Availability:
Usually Ships Same Business Day
Shipping:
Calculated at Checkout
Warranty:
3 Years

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

2N Helios IP Force IP69K Intercom, 1 Button, HD Camera, Pictograms, RFID Ready - 01334-001

$1,599.00

2N Helios IP Force comes in many configurations: 2N 9151101CHRPW is rated IP69K and IK10, and comes with one button, an integrated HD camera, pictograms depicting actions, the capability to install an RFID card reader, control of two electric locks, and the capability to connect an additional switch.

2N Helios IP Force is a rugged door entry solution. 2N Force supports the SIP protocol and connects to your IP network using an Ethernet cable. The button is transparent with a white backlight and a label that can be easily changed. The integrated security HD camera features 640x480 video resolution, 1280x960 JPEG resolution, and a wide angle of view to capture entrants. The video camera is ONVIF-S compliant. The pictograms show users the common actions. Connect a compatible RFID card reader to enable secure entry using RFID cards or keyfobs. This network door entry system has a simple security relay to prevent unauthorized manipulation. It's a full-duplex intercom with two integrated microphones and a 10W loudspeaker.

Integration with your network enables functionality beyond typical intercoms. You can, for example, control time profiles to set the doors to lock at specific times, an excellent feature for offices, schools or warehouses. The intercom can be powered through the network cable via PoE, or you can use a power supply (available separately). 9151101CHRPW is IP69K-rated for high-pressure, high-temperature wash-down. 2N Helios IP Force comes in a durable aluminum casing.

2N Helios IP Force Quick Specs:

  • Integrated Components:
    • 1x button
    • HD camera
    • Space for RFID card reader
    • Pictograms
  • Communications Protocol: SIP
  • Ethernet Ports: 1x 10/100
  • PoE: 802.3af Class 0
  • Video Resolution: 640x480 at 30fps
  • Image Resolution: 1280x960 (JPEG)
  • Sensor: 1/3" color CMOS
  • Field of View: 135°H x 109°V
  • Video Codecs: H.263+, H.263, H.264, MJPEG, MPEG-4
  • Microphone: 2x built-in
  • Speaker: 10W
  • Audio Codecs: G.711, G.729, G.722, L16/16 kHz
  • Management: via 2N Access Commander
  • Temperature: -40°F - 131°F
  • Ratings: IP69K, IK10
  • Dimensions (without frame): 8.54" x 4.29" x 3.27"
  • Dimensions (with frame): 9.53" x 5.35" x 3.27"

2N Helios IP Force Rugged SIP Intercom Package Contents:

  • Helios IP Force unit
  • Frame
  • Torx 10/20 double-ended wrench
  • 4x screws and "intelligent" dowels
  • Bushings
  • Mounting template
  • A5 transparent name plate foil
  • Spare name tag
  • Grounding connector
  • Installation manual

Warranty:
3 Years
Connectivity Type:
IP/VoIP
Device Type:
Intercom
Intercom Type:
Door Phone
Intercom Features:
Ruggedized Construction
Intercom Features:
Video
Indoor/Outdoor:
Indoor
Indoor/Outdoor:
Outdoor
