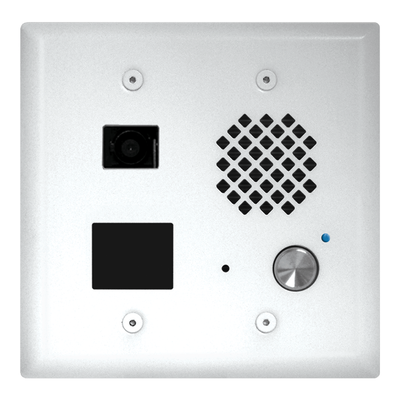

Viking E-50-WH-EWP Entry Phone with Camera in White

Viking E-50-WH-EWP entry phone with enhanced weather protection. The phone is built to withstand outdoor weather elements like precipitation and condensation. An IP66-rated construction includes sealed connectors and other weatherproof elements. The phone also includes vandal resistant features that prevent scratching and damage. Flush mount the phone outdoors, or surface mount it in the compatible VE-3x5 box. A blue LED makes it easy to find the phone in the dark.

A color video camera is built into the Viking E-50-WH-EWP phone. See visitors and guests before your give them access to your building or premises, adding an extra element of security and eliminating the need to install a separate camera. Set the phones microphone and speaker volumes, and program the phone intelligent call progress detection.

Viking E-50-WH-EWP Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4" color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30° to 150° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-WH-EWP Entry Phone Package Contents:

• Viking E-50-WH-EWP entry phone in white
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
