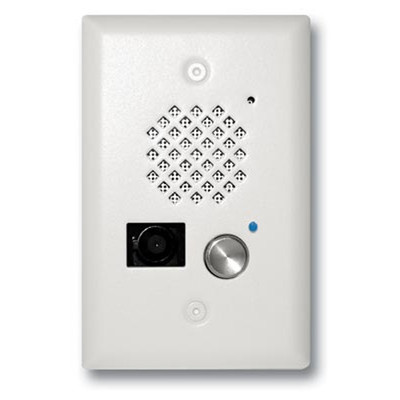

Viking E-50-WH Entry Phone with Camera in White

Viking E-50-WH is a compact door phone with a built-in color camera. Easily find the phone in the dark by following the glowing blue LED, which also indicates ringing and off-hook. Visitors and guests press the phone push button to dial your end of the line. See who outside your door by accessing the phone camera, displaying a live color video of the environment.

Programmable functions onboard the Viking E-50-WH phone include microphone and speaker volume, and auto answer options. The phone also includes intelligent call progress detection with automatic hang-up options. Flush mount the phone in a single gang electrical box, or surface mount it in a VE-3x5 box.

Viking E-50-WH Speakerphone Quick Specs:

• Connectivity: analog
• Camera Power: via 12V adapter
• Image Sensor: 1/4 color CMOS
• Resolution: 640x480 @ 30 fps
• Sensitivity: 0.025 LUX (50 IRE)
• Lens: 2.1 mm
• Field of View: 80° horizontal, 60° vertical, 100° diagonal
• Phone Power: via telephone line
• Ring Voltage: min. 25V AC RMS
• CPC Disconnect: min. 300ms
• REN: 0.8A
• Speaker Volume: approx. 62db max. @ 1m
• Connections: 5x gel-filled butt connectors
• Faceplate Dimensions: 4.875" x 3.125" x 0.18"
• Phone Dimensions: 2.84" x 1.8" x 1.65"
• Operating Temperature: -30° to 150° F
• Mounting: flush mount (optional wall mount)

Viking Electronics E-50-WH Entry Phone Package Contents:

• Viking E-50-WH entry phone in white
• Circuit board mounting plate
• 1/4" thick foam faceplate gasket
• Faceplate
• 5x gel-filled butt connectors
• 2x 6-32 x 1.25" screws
• LED light pipe
• 12V DC adapter

Viking E-50 Series Documentation:

• Viking E-50 Series Product Manual
