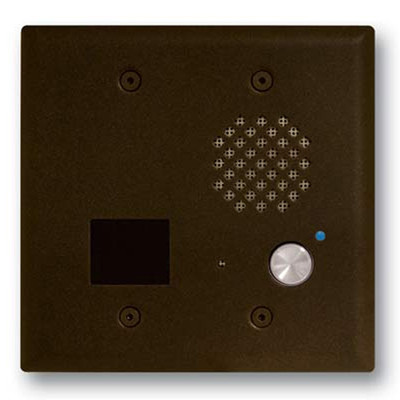

Viking E-70-BN Card Reader Door Phone in Bronze

The Viking E-70-BN door phone features a two-way intercom and built-in card reader, and a protective faceplate with an oil rubbed bronze finish. A blue LED light next to the call button makes it easy to find. The card reader is compatible with the 26-bit Wiegand standard for connectivity to door controllers and other devices. Use this phone to communicate with guests and allow keyless entry for employees.

Flush mount the Viking E-70-BN in a double gang electrical box or surface mount it in the optional VE-5x5 box. Programmable intelligent call progress detection lets the phone automatically hang up when certain conditions are met. An auto answer features is also available, and the microphone and speaker volume is adjustable.

Viking E-70-BN Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line or DC
• Wiring: gel-filled butt connectors
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Card Reader: built-in
• Data Format: 26-bit Wiegand
• Frequency: 125KHz
• Read Range: 1.25 to 2.0
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-70-BN Door Intercom Package Contents:

• Viking E-70-BK door phone
• Faceplate with bronze finish
• LED light pipe
• 4x hexdrive flathead screws
• 1/4 foam faceplate gasket
• Circuit board mounting plate
• 2x double gang adapter plates

Viking E-70 Series Documentation:

• Viking E-70 Series Product Manual
