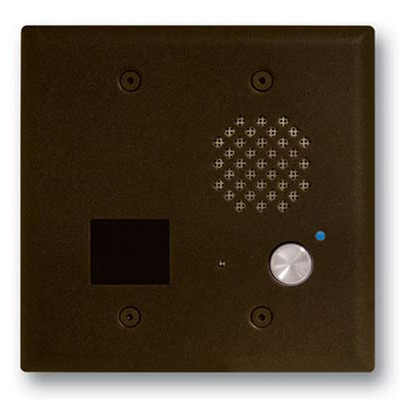

Viking E-70-BN-EWP Card Reader Door Phone in Bronze

Enhanced weather protection equips the Viking E-70-BN-EWP door phone with features like a mylar speaker, specialized gaskets, seals and a self-draining microphone. Mount the phone outdoors in a double gang electrical box, the optional VE-5x5 box for surface mounting or the optional VE-GNP gooseneck pedestal mount. An attractive oil rubbed bronze-color finish lets it blend in, while the built-in blue LED light makes it easy to find.

The Viking E-70-BN-EWP phone offers programmable intelligent call progress detection and an auto answer feature. Adjust the volume of the speaker and microphone for optimal use. The built-in card reader is compatible with the 26-bit Wiegand standard for connectivity to a door controller and entry devices. Provide two-way audio communications, as well as keyless entry.

Viking E-70-BN-EWP Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line or DC
• Wiring: gel-filled butt connectors
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Card Reader: built-in
• Data Format: 26-bit Wiegand
• Frequency: 125KHz
• Read Range: 1.25 to 2.0
• Operating Conditions: IP66 rated, -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-70-BN-EWP Door Intercom Package Contents:

• Viking E-70-BN-EWP door phone
• Faceplate with bronze finish
• LED light pipe
• 4x hexdrive flathead screws
• 1/4 foam faceplate gasket
• Circuit board mounting plate
• 2x double gang adapter plates

Viking E-70 Series Documentation:

• Viking E-70 Series Product Manual
