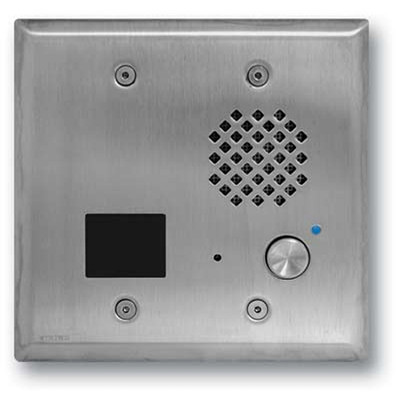

Viking E-70-SS Card Reader Door Phone in Stainless Steel

The Viking E-70-SS door phone features a stainless steel faceplate, call button, speaker screen and mounting hardware. The phoneâ construction is vandal resistant to reduce damage due to break-in attempts or criminals. Flush mount the phone in a double gang electrical box, or surface mount it in the optional VE-5x5 box. Wherever it is, the blue LED light over the call button makes it easy to find the phone.

A card reader is built into the Viking E-70-SS phone. The reader supports the Wiegand format, for connectivity with door controllers and other devices. Use this phone for two-way communications, as well as keyless entry. Calls can be controlled through intelligent progress detection for hang-up and auto answer for monitoring. Adjust the audio by leveling the volume on the microphone and speaker.

Viking E-70-SS Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line or DC
• Wiring: gel-filled butt connectors
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Card Reader: built-in
• Data Format: 26-bit Wiegand
• Frequency: 125KHz
• Read Range: 1.25 to 2.0
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-70-SS Door Intercom Package Contents:

• Viking E-70-SS door phone
• Faceplate in stainless steel
• LED light pipe
• 4x hexdrive flathead screws
• 1/4 foam faceplate gasket
• Circuit board mounting plate
• 2x double gang adapter plates

Viking E-70 Series Documentation:

• Viking E-70 Series Product Manual
