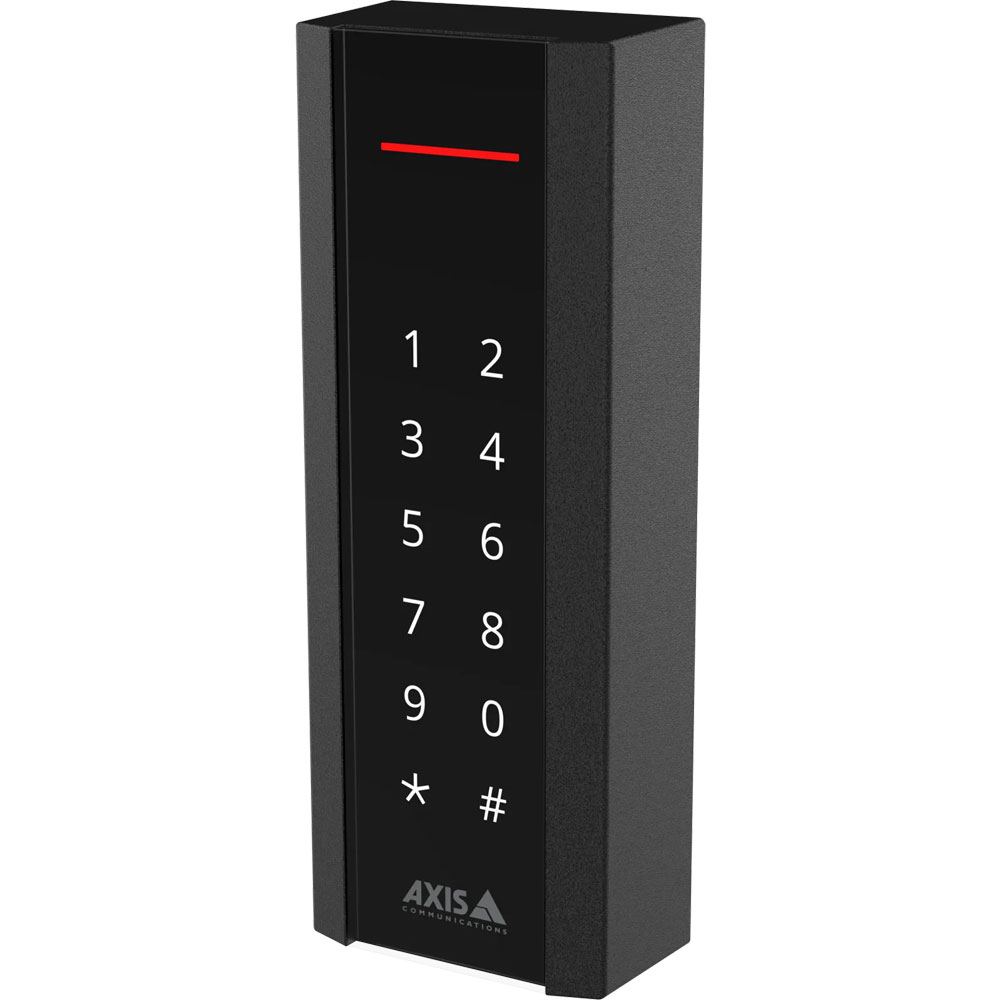

Axis A4611 Network Reader with Keypad - 03503-001

Axis A4611 is a compact indoor/outdoor RFID reader with integrated keypad for a complete door entry control interface for one door. A4611 is an IP reader that connects to the network via a 9.5 ft Ethernet pigtail cable. Measuring less than two inches wide, it is suitable for mounting on mullions or other constrained spaces. As an RFID reader, A4611 is compatible with a wide range of 13.56 MHz RFID card and key fobs. Its scratch-resistant glass front panel and touch keypad make it simple to operate.

A4611 is an IP device, which means it is network-connected. Configuration and management is done using its secure web-based interface, which is accessible anywhere. Axis has developed and applied extensive cybersecurity and physical security features, which prevent unauthorized access via the network and via physical tampering.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis A4611 Quick Specs:

• RFID: 13.56 MHz
• Ethernet Connection: 9.5 ft pigtail (2.9 m)
• Power: 802.3af Type 1 Class 3 PoE or 12 V DC (max. 12 W)
• I/O Interfaces:
• Active Output: 8 to 12 V DC (max. 600 mA)
• Relay (Dry): 1x Form C relay NO/NC (max. 1 A 30 V DC)
• Digital Inputs: 2x digital inputs
• Durability Rating: IP54

Axis A4611 Network Reader with Keypad Package Contents:

• Reader
• Installation Guide
• Torx T10 L-Key

Axis A4611 Documentation:

• Axis A4611 Datasheet
• Axis A4611 Installation Guide
• Axis A4611 Dimension Drawing
