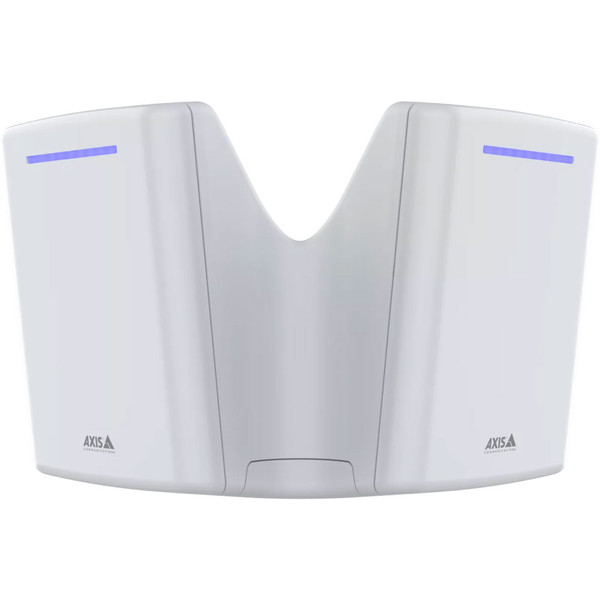

Axis D2122-VE 180° Radar White - 03124-001

Axis D2122-VE is an AI-powered radar with a 180° horizontal field of detection. Designed for outdoor use in large, open areas, D2122-VE provides 24/7 protection in all weather and lighting conditions. Its box-shaped recognition zones provide exceptional efficiency in area coverage with a maximum human recognition range of over 450 feet and a maximum vehicle recognition range of over 650 feet. That's an up to 215,000 square foot recognition zone for persons and an up to 421,000 square foot recognition zone for vehicles — amazing. It can accurately track up to 100 different objects at the same time. Configure D2122-VE to automatically trigger actions on network connected devices like setting off a strobe/siren or making a camera start recording.

D2122-VE can be used by itself or integrated with select Axis PTZ cameras that use the ARTPEC-9 chip. This radar/video fusion enriches the data and improves actionable insights and decision making when it comes to your safety. You can even set up the system so both radar and camera need to verify the detection and classification before triggering an action. Only one IP address is needed for the paired devices. D2122-VE uses the same mounting interface as the cameras, too, which makes installation easier. The radar is energy efficient and is connected to the network via Ethernet cable, is powered via PoE, and has a PoE output port for powering the PTZ camera — a streamlined installation. Mount the radar on poles, fence lines, or walls (may require a separate mounting kit).

Note: Axis D2122-VE is available in white or black. Axis 03124-001 is the white version. For the black version, see Axis 03123-001.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D2122-VE Quick Specs:

• Radar Sensor: FMCW (Frequency Modulated Continuous Wave)
• Field of Detection: 180° horizontal
• Recognition Zone: up to 450 ft (for persons)
• Detection Range: up to 650 ft (for vehicles)
• Radar Coverage:
• For Persons: 215,000 ft²
• For Vehicles: 421,000 ft²
• System on Chip (SoC): ARTPEC-9
• Ethernet Ports: 1x Gigabit RJ45 PoE in, 1x Gigabit RJ45 PoE out
• PoE Input: 802.3bt Type 2 Class 4
• PoE Output: 802.3bt Type 4 Class 8 (provides 802.3bt Type 3 Class 6)
• Edge Storage: microSD, microSDHC, microSDXC
• Operating Temperature Range: -40°F to 140°F
• Durability Standards: IP66/IP67, IK10, NEMA 4X
• ONVIF Profiles: G, M, S, T

Axis D2122-VE Radar White Package Contents:

• Radar
• Installation Guide
• Torx T20 Screwdriver
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis D2122-VE Documentation:

• Axis D2122-VE Datasheet
• Axis D2122-VE Installation Guide
