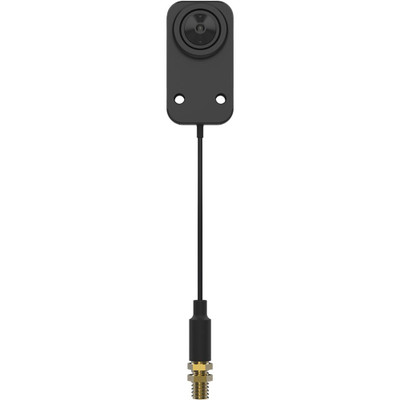

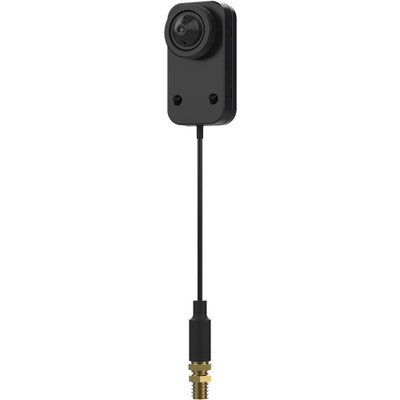

Axis F2105-RE 1080p Standard Sensor Unit - 02640-001


Axis F2105-RE is an ultra-compact sensor unit for surveillance where you don't want the camera to be noticed. F2105-RE connects to a 2nd generation Axis F Series main unit (not included) like Axis F9111 or F9114. Depending on the main unit you use, the sensor can provide up to 1080p Full HD video at 60 fps or up to 720p HD video at 180 fps. The sensor has a generous 108° field of view and excellent low-light performance, making it an exceptional general-purpose security camera. And it's been ruggedized for durability, meeting up to the IP6K9K durability standard (depending on the cable you use it with). It has an extended operating temperature range of -40°F to +140°F.

F2105-RE does not include a cable. To connect the sensor with a main unit, you must use a 2nd generation Axis F Series cable, like Axis TU6004-E or Axis TU6005 (available separately). F2105-RE uses an SMA-FAKRA connector, which improves vibration resistance, making it excellent for installation in vehicles or near areas like highways or factories where vibrations are a concern.

Note: Axis F2105-RE is a 2nd generation Axis F Series sensor unit and must be used with 2nd generation cables and main units. F2105-RE is not compatible with 1st generation cables and main units.

Axis F2105-RE Quick Specs:

  • Image Sensor: 1/2.8" progressive scan RGB CMOS
  • Video Resolution:
    • up to 1080p Full HD (1920 x 1080 px) @ 60 fps
    • up to 720p HD (1280 x 720 px) @ 180 fps
  • Lens: fixed 3.1 mm, f/2.0
  • Field of View:
    • Horizontal: 108°
    • Vertical: 58°
  • Minimum Illumination:
    • Color: 0.1 lux
  • Physical Connector: 1x SMA connector
  • Operating Temperature: -40°F to +140°F
  • Durability Ratings: IP66, IP67, IP6K9K, NEMA 4X (rating dependent on cable used to connect sensor)
  • Dimensions:
    • Length: 1.8 in
    • Diameter: 1.2 in
  • Weight: 0.1 lb

Axis F2105-RE Standard Sensor Package Contents:

  • F2105-RE Sensor Unit
  • Installation Guide

Axis F2105-RE Documentation:
