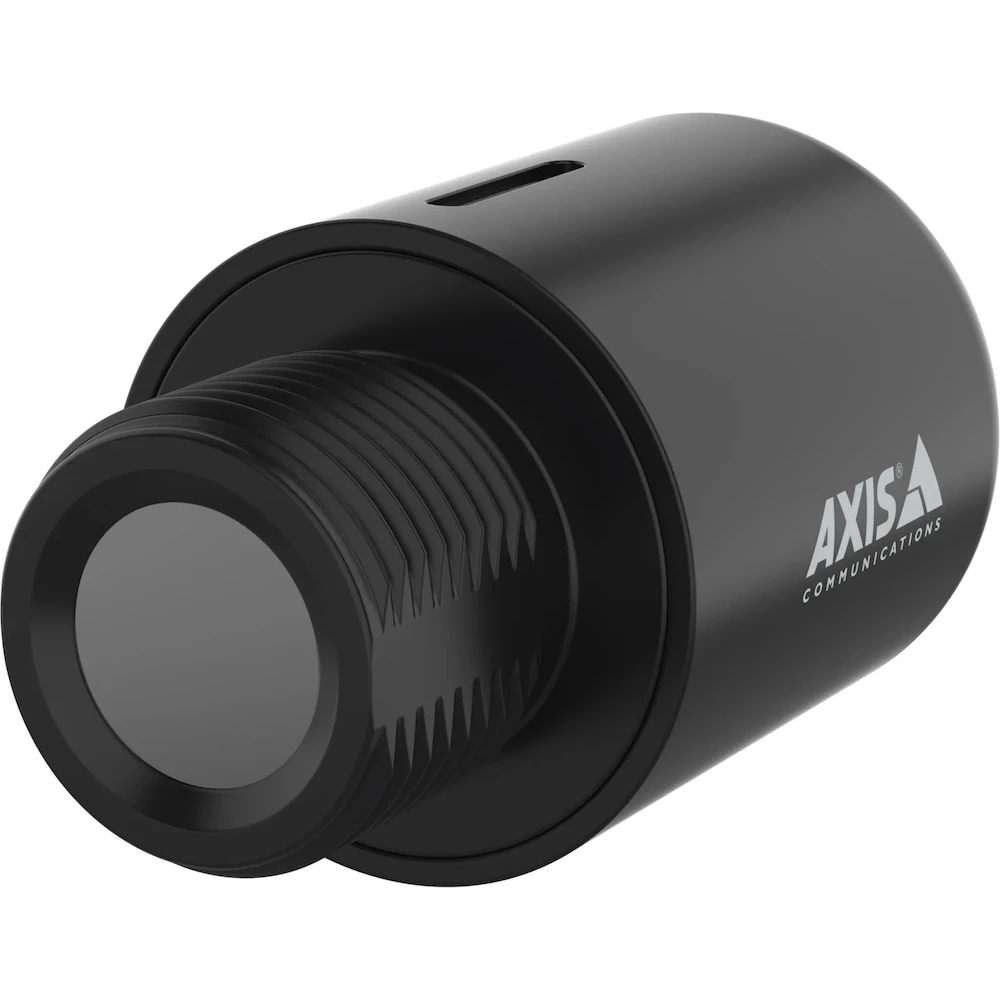

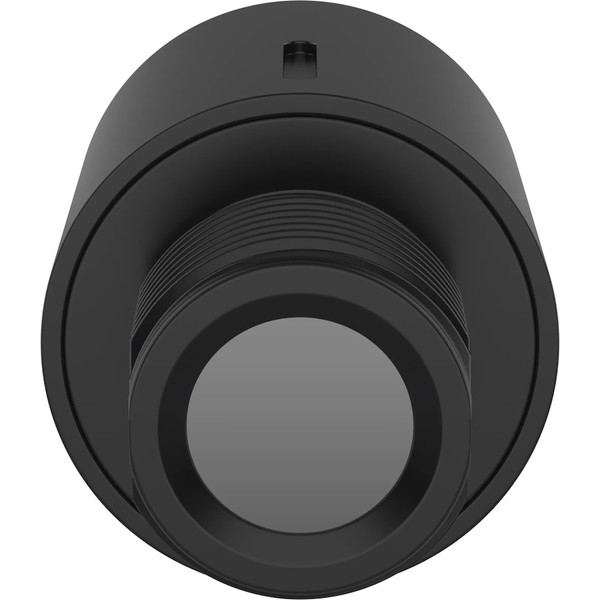

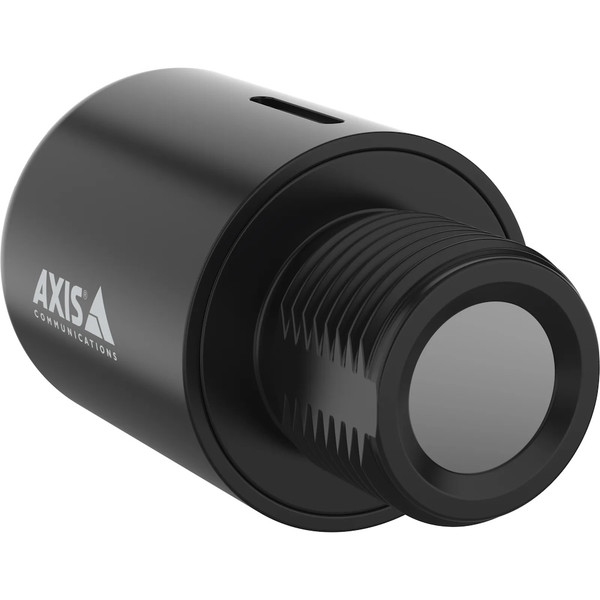

Axis F2180-TE 57° HFoV Thermal Sensor - 03371-001

Axis F2180-TE is a discreet thermal sensor that connects to an Axis F91 Mk II Main Unit (not included). F2180-TE connects to the main unit via a cable, which means you can position the very small sensor up to 30 meters (98 feet) away; the main unit can be safely positioned out of the way and the sensor can fit in a wide range of tight spaces, including in machinery or vehicles. Use F2180-TE to remotely monitor temperatures, trigger temperature-based events, and more. The sensor is designed for highly accurate detection of temperature deviations. You can configure the polygonal detection areas to ensure the sensor is reading the correct information.

Note: Axis F2180-TE comes in two models: one with a 57° horizontal field of view and one with a 95° horizontal field of view. This model, Axis 03371-001, has a narrower 57° horizontal field of view. If you want the thermal sensor with a wider field of view, search for Axis 03370-001.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis F2180-TE 57° HFoV Quick Specs:

• Image Sensor: uncooled VOx microbolometer 160 x 120 px
• Lens: athermalized
• Field of View: 57° horizontal
• Object Temperature Range: 14°F to 842°F
• Durability Ratings: IP66, IP67, IP6K9K
• Connector: SMA
• Operating Temperature Range: 14°F to 140°F

Axis F2180-TE 57° HFoV Thermal Sensor Package Contents:

• Sensor
• Installation Guide

Axis F2180-TE Documentation:

• Axis F2180-TE Datasheet
• Axis F2180-TE Installation Guide
• Axis F2180-TE Dimension Drawing
