Axis I9410 Help Point Kit - 03490-001

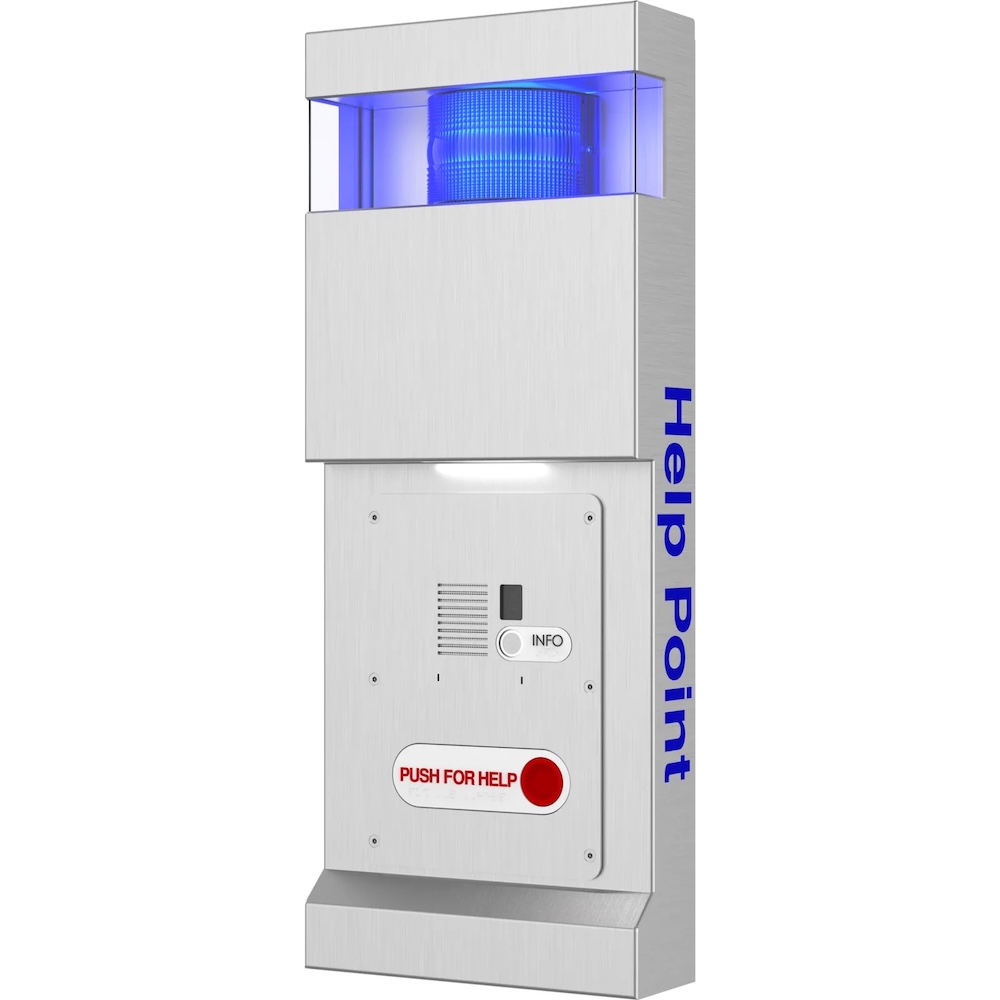

Axis I9410 Help Point Kit is an all-in-one, highly visible solution for emergency communications in public spaces. I9410 consists of an Axis I7010-VE Network Intercom, Axis TI9400 Help Point Enclosure, and Axis TI7301 Mounting Plate. When used together, they combine a ruggedized, outdoor-ready intercom with a stainless steel faceplate that guides users to the call button clearly, all mounted in a stainless steel enclosure with integrated blue LED beacon.

I7010-VE is a network-connected intercom built to make conversations better with dual microphones and a powerful speaker. Simple to use, it has been extensively tested for durability: it meets the IP66/IP69, IK10, and NEMA 4X Standards. And it's secure, too, with Axis Edge Vault providing a full, hardware-based cybersecurity solution. I7010-VE is a SIP intercom, compatible with a very wide range of first-party and third-party systems.

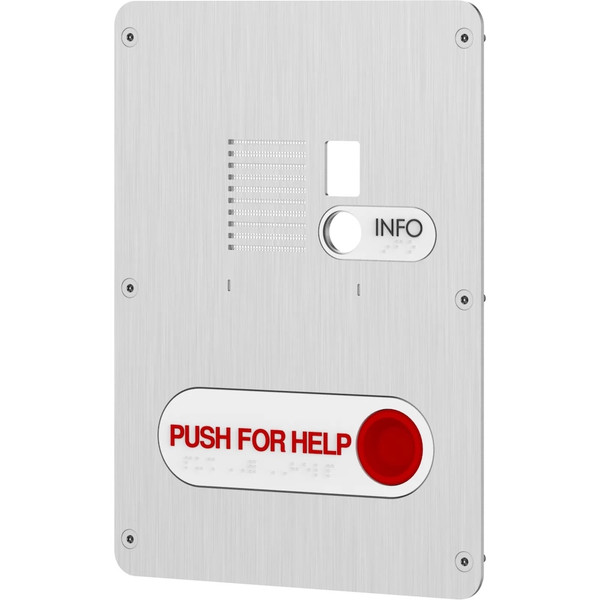

TI7301 is a stainless steel adapter plate with a red PUSH FOR HELP button clearly labelled in red letters and braille for accessibility. It protects the intercom and makes it more visible.

TI9400 is a stainless steel Help Point enclosure that makes the intercom into a highly visible emergency phone. Use it for public safety almost anywhere: transit stations, school and business campuses, parking garages, and more. Its installation process has been streamlined with both it and the intercom powered via a single PoE cable.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis I9410 Quick Specs:

Axis I7010-VE:

• VoIP Protocol: SIP
• System on a Chip (SoC): CV25
• Audio Input: 2x built-in microphones, line input
• Audio Output: built-in speaker, line output
• Hardware Interfaces:
• Ethernet: 10/100 RJ45 PoE
• I/O: terminal block for two configurable supervised inputs / digital outputs and 1 relay
• Audio 4-pin terminal block for audio input and output
• Serial Communication: RS485, half duplex/2-wire
• Power: 802.3at Type 2 Class 4 PoE (typical 3 W; max. 25.5 W)
• Storage: microSD, microSDHC, microSDXC
• Durability Ratings: IP66/IP69, IK10, NEMA 4X
• Operating Temperature Range: -40°F to 140°F

Axis TI9400:

• Casing: stainless steel
• Temperature Range: -40°F to 140°F

Axis I9410 Help Point Kit Package Contents:

Axis I7010-VE:

• Intercom
• Installation Guide
• Resistorx L-Key
• Terminal Block Connector
• Owner Authentication Key

Axis TI9400:

• Enclosure
• Installation Hardware

Axis TI7301:

• Adapter Plate

Axis I9410 Documentation:

• Axis I7010-VE Datasheet
• Axis TI9400 Datasheet
