Axis I9416 Help Point Kit - 03489-001

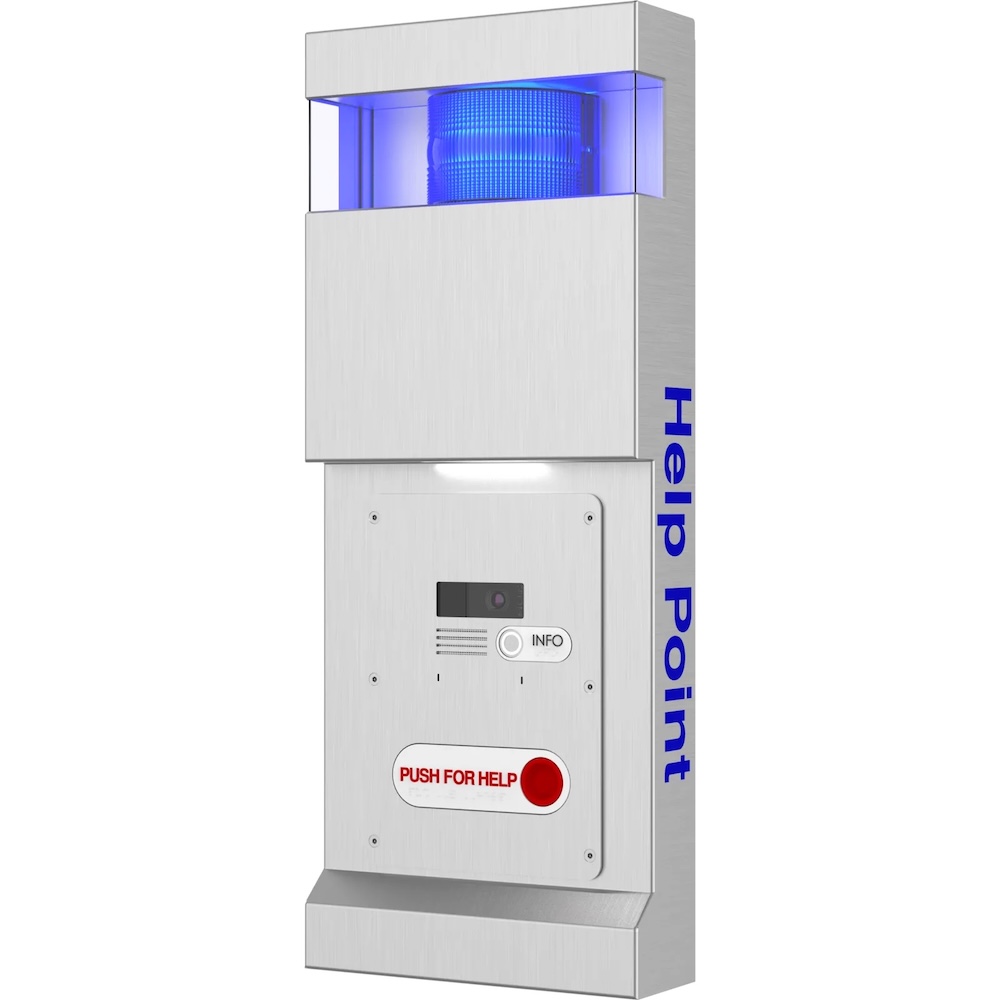

Axis I9416 Help Point Kit is a network video emergency phone solution for indoor or outdoor usage. I9416 consists of an Axis I8016-LVE Network Video Intercom, Axis TI8301 Mounting Plate, and Axis TI9400 Help Point Enclosure. When installed, the items become a ruggedized, highly visible emergency phone with stainless steel faceplate and stainless steel enclosure with blue LED beacon.

I8016-LVE is a network video intercom with 5 MP camera and noise reducing audio performance. The camera has a wide-angle 140° field of view to see people near the intercom; built-in infrared lights enable video even without any light at all. The rugged intercom meets numerous durability standards including IP66/IP69 and IK10. Because it's a SIP intercom, it's compatible with an enormous range of Axis and third-party systems.

TI8301 is a stainless steel adapter plate with a red PUSH FOR HELP button. The button is labelled in both red letters and braille for visibility and accessibility for everyone. The faceplate has a custom cut-out for the I8016-LVE's camera. It both protects the intercom and makes it an emergency phone.

TI9400 is a Help Point enclosure. It has Help Point clearly written on its side and a bright blue LED light for high visibility even in the dark. The enclosure makes the intercom suitable as an emergency phone everywhere: transit hubs, college campuses, logistics depots, and more. Axis streamlined the installation process: both the LED light and the intercom itself are powered via a single PoE cable run.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis I9416 Quick Specs:

Axis I8016-LVE:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• System on Chip (SoC): ARTPEC-7
• Camera:
• Sensor: 1/2.7-in progressive scan RGB CMOS
• Lens: 1.95 mm, f/2.2
• Field of View: 150° H x 117° V
• Minimum Illumination: 0.3 lux color, 0 lux (with infrared on)
• Infrared Illumination: 16 ft (5 m)
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Video Resolution: up to 2592 x 1944 px at 30 fps
• Audio: two-way, full duplex
• Microphone: built-in
• Speaker: built-in
• Hardware Interfaces:
• Ethernet: 10/100 RJ45 PoE
• I/O: 6–pin terminal block for 2 inputs/outputs and 1 relay
• Audio: 4-pin terminal block for audio input and output
• Durability Ratings: IP66/IP69, IK10, NEMA 4X
• ONVIF Profiles: G, M, S, T

Axis TI9400:

• Casing: stainless steel
• Temperature Range: -40°F to 140°F

Axis I9416 Help Point Kit Package Contents:

• Intercom
• Installation Guide
• Windows Decoder 1-User License
• Terminal Block Connector
• Allen Key (Resistorx 10)

Axis TI8301:

• Adapter Plate

Axis TI9400:

• Enclosure
• Installation Hardware

Axis I9416 Documentation:

• Axis I8016-LVE Datasheet
• Axis TI9400 Datasheet
