Axis M3945-R RJ45 3.6 mm 2 MP Indoor Onboard IP Camera - 03373-001

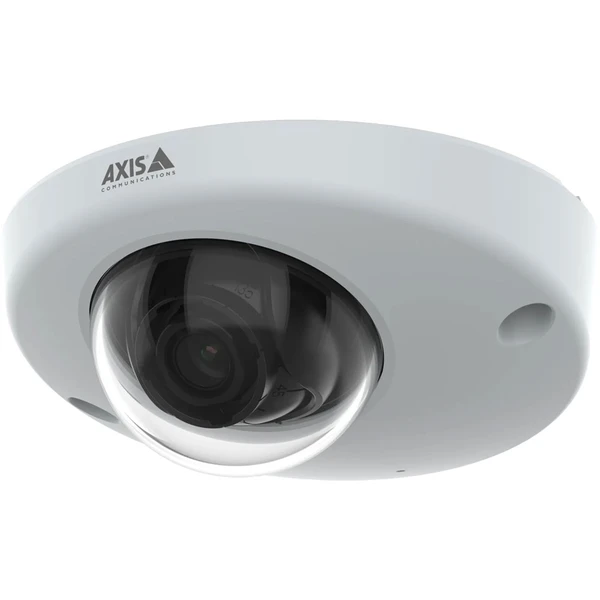

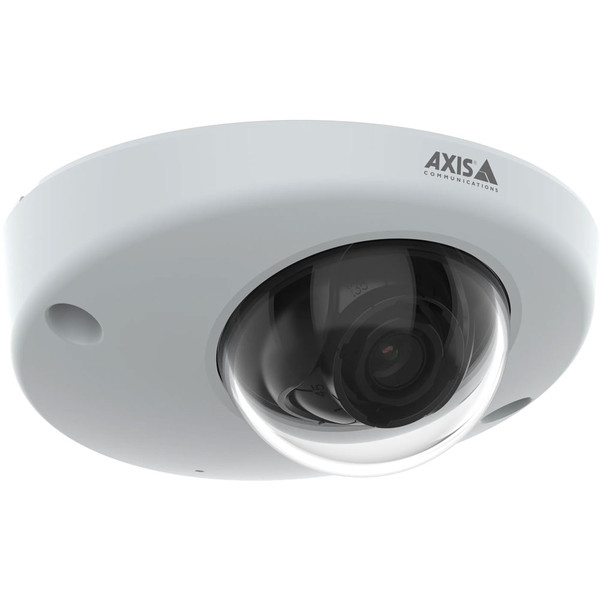

Axis M3945-R is a dome IP camera that's intended to be installed in a bus or similar moving vehicle. M3945-R combines a 1080p Full HD security camera with built-in microphone for simultaneous audio pickup — two levels of detailed security. It can take video at up to 60 fps (frames per second), which is highly useful for fast-movement surveillance — perfect for using the camera to take video of traffic. This model has a wide-angle 3.6 mm lens and RJ45 connector. It meets many transportation industry certifications, including UNECE R10, UNECE R118, and IEC 60721-3-5 5M3, and meets the IP66/67 and IK10 Standards for durability.

As an IP camera, M3945-R is AI-powered and has image-enhancing technologies like Lightfinder 2.0 and Forensic WDR. Select a scene profile to optimize image quality with no fuss, including forensic, vivid, traffic overview. The onboard network camera is protected with Axis Edge Vault, a hardware-based platform that integrates first-class cybersecurity from the ground up. Store video locally in the camera using a microSD card — simple. And M3945-R lets you upgrade existing Axis onboard cameras because it shares the same form-factor, backplate, and accessories.

Note: Axis M3945-R comes in four models: with either a 2.8 mm or 3.6 mm lens, and with either an RJ45 or M12 connector. This model, Axis 03373-001, comes with a 3.6 mm lens and an RJ45 connector.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M3945-R RJ45 3.6 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 2 MP (1920 x 1080 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.6 mm, f/2.0
• Field of View:
• Horizontal: 83°
• Vertical: 44°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• RJ45: 10/100 PoE
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis M3945-R RJ45 3.6 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis M3945-R Documentation:

• Axis M3945-R Datasheet
• Axis M3945-R Installation Guide
