Axis P1280-E 2.2 mm Covert Thermal IP Camera - 02114-001

(You save $23.01 )

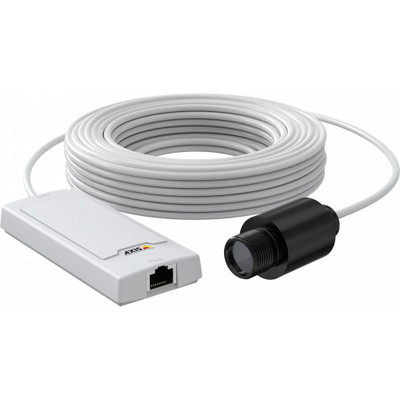

Axis P1280-E is a covert thermal IP camera for reliable detection in all weather and lighting conditions with a low rate of false alarms and protection of personal privacy. P1280-E comprises a FA1080-E Sensor Unit and P12 Mk II Main Unit with a 39 foot cable to connect them. The sensor unit has a 2.2 mm athermalized lens for wide-angle coverage. It is ultra-small — 2.1 inches long and 1.2 inches in diameter — which lets you place it discreetly wherever you need it. The sensor unit connects to the main unit, which processes the video and connects to the network. By having the camera divided into two, you get a much, much smaller camera for ultra-discreet surveillance.

P1280-E comes with built-in analytics, including Motion Guard, Fence Guard, and Loitering Guard and support Perimeter Defender. Store video evidence in the main unit using a microSD card or through the network. P1280-E is ONVIF Profile G and Profile S compliant. The package also includes the Axis F8201 Vari-angle Mounting Bracket.

Note: Axis P1280-E 2.2 mm 8.3 fps (02114-001) has a 2.2 mm lens. If you want the same camera with a 4 mm lens for a narrower viewing angle with a longer detection distance, search for Axis P1280-E 4 mm 8.3 fps (0940-001).

Axis P1280-E 2.2 mm Quick Specs:

  • Image Sensor: uncooled microbolometer 208 × 156 px
  • Video Resolution: video can be scaled up to 640 × 480 px
  • Frame Rate: up to 8.3 fps
  • Video Compression: H.264 (AVC) Baseline, Main and High; Motion JPEG
  • Lens: athermalized fixed 2.2 mm, f/1.05
  • Field of View:
    • Horizontal: 63°
    • Vertical: 47°
  • Physical Connectors (Main Unit):
    • Ethernet: 10/100 RJ45 POE
    • Sensor Unit: RJ12
  • Physical Connector (Sensor Unit): RJ12
  • Power Over Ethernet (POE): 802.3af/at Type 1 Class 2
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF Profiles: G, S
  • Operating Temperature: -4°F to 122°F
  • Durability Ratings (Sensor Unit): IP66/IP67
  • Dimensions (Main Unit):
    • Height: 0.6 in
    • Width: 1.8 in
    • Length: 4.3 in
  • Dimensions (Sensor Unit):
    • Length: 2.1 in
    • Diameter: 1.2 in
  • Weight:
    • Main Unit: 0.16 lb
    • Sensor Unit with Cable: 0.8 lb

Axis P1280-E 2.2 mm Covert Thermal Network Security Camera Package Contents:

  • FA1080-E 2.2 mm Sensor Unit
  • P12 Mk II Main Unit
  • 39 ft Cable
  • Installation Guide
  • Windows Decoder 1-User License
  • AVHS Authentication Key
  • F8201 Vari-Angle Mounting Bracket
