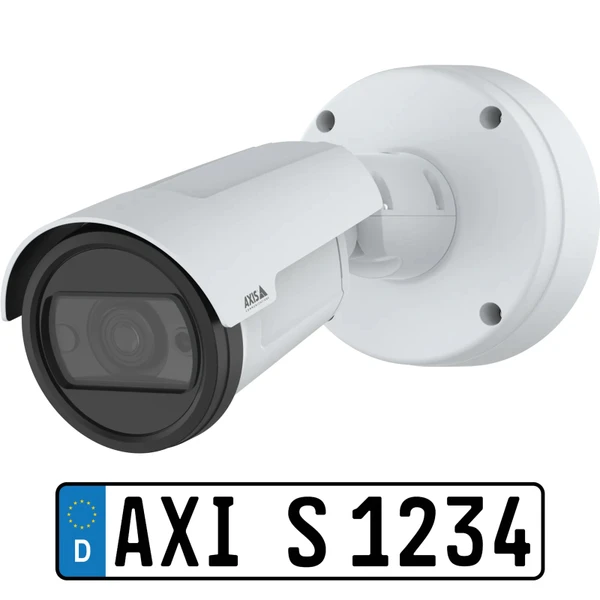

Axis P1486-LE License Plate Verifier Kit - 03618-001

The Axis P1486-LE License Plate Verifier Kit comes with an Axis P1486-LE Bullet Camera with the Axis License Plate Verifier application already installed on the camera and a license for the application included. The camera uses global shutter technology to provide exceptionally clear, low distortion images of fast-moving objects. It accurately captures the license plates of vehicles moving at up to 130 km/h (81 mph) across two lanes at the same time. License Plate Verifier is an edge-based application that runs directly on the camera and includes analytics options for classifying type, make, model, and color of vehicles. It can easily be integrated with first- and third-party VMS's.

Axis P1486-LE has been purpose-tuned for improved performance during license plate capture. The bullet camera has a 3 MP global shutter image sensor. It has a detection range of 23 to 98 feet with built-in infrared lights for no-light scenarios. The camera's license plate capture assistant makes it simple for you to optimize settings based on the specifics of the installation: mounting height, distance to vehicle, expected vehicle speed. Remote zoom/focus and automatic tilt/roll compensation makes installation and alignment simple. Axis designed P1486-LE to withstand the elements and the challenges of operating near roadways. It meets numerous industry durability standards, can deal with a sustained wind load of 134 mph, and has an extended operating temperature range, including safe start-up in extreme cold and a maximum temperature of 165°F according to NEMA TS2 (2.2.7). To round out the installation, Axis offers an extensive range of mounts, housings, cabinets, and more.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P1486-LE Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.8-in progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 x 1080 px)
• Frame Rate:
• With Forensic WDR: up to 30 fps in all resolutions
• No WDR: up to 60 fps in all resolutions
• Cropped Mode: up to 200 fps (1280 x 720 px)
• Binned Mode: up to 270 fps (1024 x 768 px)
• Video Compression: AV1; H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 10-40 mm, f/1.3-1.4
• Field of View:
• Horizontal: 42° to 11°
• Vertical: 30° to 6°
• Minimum Illumination:
• Color: 0.02 lux
• B/W: 0.1 lux
• Infrared: 0 lux
• Infrared Range: up to 197 ft (60 m)
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• Audio: 3.5 mm mic/line in
• I/O: terminal block for 1 supervised alarm input and 1 output
• Power: DC input
• Power: 802.3at Type 1 Class 3 PoE (typical 4.41 W; max. 12.95 W)
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP66/IP67, IK10, NEMA 4X

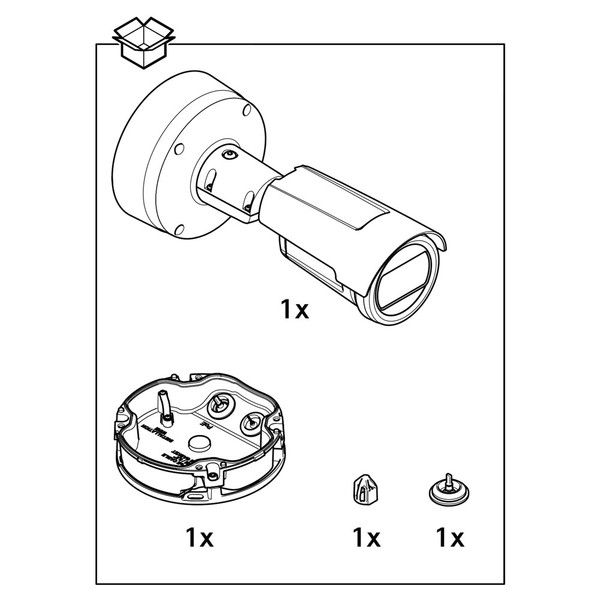

Axis P1486-LE License Plate Verifier Kit Package Contents:

• Camera
• Weathershield
• Installation Guide
• Terminal Block Connector
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis P1486-LE Kit Documentation:

• Axis P1486-LE License Plate Verifier Kit Datasheet
• Axis P1486-LE License Plate Verifier Kit Installation Guide
• Axis P1486-LE License Plate Verifier Kit Dimension Drawing
