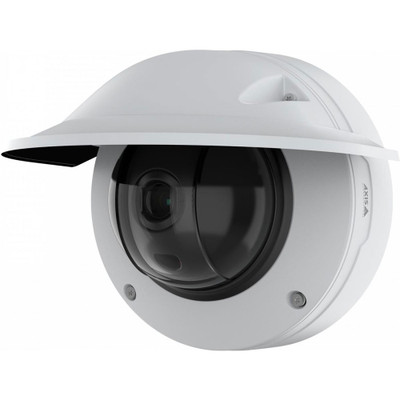

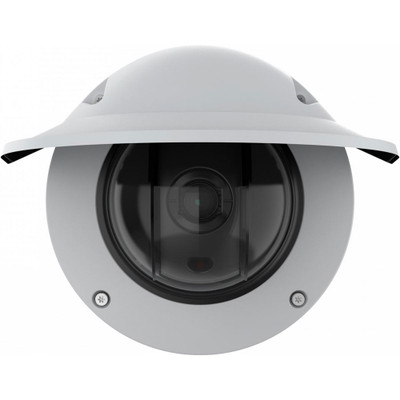

Axis Q3536-LVE 29 mm 4 MP Deep Learning Outdoor IP Camera - 02224-001

(You save $25.01 )

Axis Q3536-LVE is an elite dome IP camera that uses a 4 MP sensor — twice the resolution of 1080p Full HD — for exceptionally detailed surveillance video. Designed for outdoor installation, Q3536-LVE meets numerous durability standards with its aluminum casing and has an extended operating temperature range of -58°F to 131°F. It has OptimizedIR infrared lights with 200 foot reach and has a dome that’s IR-shield to prevent reflections and keep your video clear. Lightfinder 2.0 improves the reproduction of naturalistic color when the scene is extremely dark. Forensic WDR adapts to high-contrast lighting to retain more detail in the event of bright light and deep shade.

Q3536-LVE has a powerful, purpose-made ARTPEC-8 chip with deep learning processing unit. Object Analytics comes installed on the camera, letting it automatically detect and classify humans and vehicles. It features Edge Vault protection, a hardware-based cybersecurity solution that brings together secure boot, device ID, and more. Provide redundant power — PoE and DC — to ensure performance in the event of a power disruption. Store video in camera using a microSD card or through the network via a NAS or NVR solution. Q3536-LVE is compliant ONVIF Profiles G, M, S, and T. The package includes a weathershield to protect the camera from rain.

Note: Axis Q3536-LVE 29 mm (02224-001) has an 11.3-29.4 mm telephoto lens. If you want the same camera with a wide-angle lens, search for Axis Q3536-LVE 9 mm (02054-001), which has a 4.3-8.6 mm lens.

Axis Q3536-LVE 29 mm Quick Specs:

  • System on a Chip (SOC): ARTPEC-8
  • Image Sensor: 1/1.8” progressive scan RGB CMOS
  • Video Resolution: up to 4 MP (2688 × 1512 px)
  • Frame Rate: up to 30 fps (with WDR), up to 60 fps (without WDR)
  • Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
  • Lens: varifocal 11.3-29.4 mm, f/1.7
  • Field of View:
    • Horizontal: 40° to 15°
    • Vertical: 22° to 9°
  • Camera Angle Adjustment:
    • Pan: ±180°
    • Tilt: -43° to +80°
    • Rotate: ±175°
  • Minimum Illumination:
    • Color: 0.08 lux
    • Infrared: 0 lux
  • Infrared Range: up to 200 ft
  • Audio: 2-way (full duplex)
  • Physical Connectors:
    • Ethernet: Gigabit RJ45 POE
    • Audio: 3.5 mm mic/line in, 3.5 mm line out
    • Terminal Block: for two configurable supervised inputs/digital outputs
    • Power: DC input
  • Power Over Ethernet (POE): 802.3at Type 2 Class 4
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF Profiles: G, M, S, T
  • Operating Temperature: -58°F to 131°F
  • Durability Ratings: IP66, IP6K9K, IK10+, NEMA 4X
  • Dimensions:
    • Height: 4.9 in
    • Diameter: 7.3 in
  • Weight (with Weathershield): 4.6 lb

Axis Q3536-LVE 29 mm Network Security Camera Package Contents:

  • Q3536-LVE 29 mm Camera
  • Installation Guide
  • Windows Decoder 1-User License
  • Drill Hole Template
  • Terminal Block Connector for I/O
  • Resistorx L-Key
  • Connector Guard
  • Cable Gasket
  • Conduit Adapter
  • Mounting Bracket
  • Weathershield

Axis Q3536-LVE Documentation:
