Axis Q3536-LVE 9 mm 4 MP Deep Learning Outdoor IP Camera - 02054-001

No reviews yet Write a Review
(You save $24.01 )
Usually Ships Same Business Day
Calculated at Checkout
5 Year

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

Axis Q3536-LVE 9 mm 4 MP Deep Learning Outdoor IP Camera - 02054-001

(You save $24.01 )

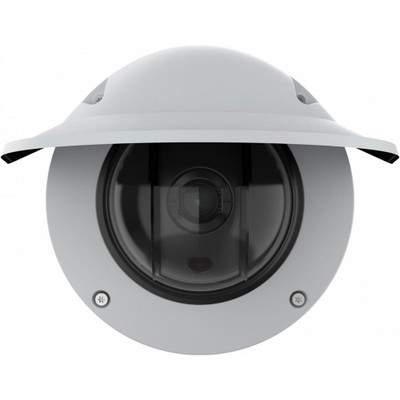

Axis Q3536-LVE is a compact dome IP camera that gives you 4 MP surveillance video: 2× the resolution of 1080p Full HD. Designed for outdoor installation, Q3536-LVE 9 mm is perfect for general surveillance. It meets numerous industry standards for durability and vandal-resistance with an aluminum casing. It has an extended operating temperature range of -58°F to 131°F, making it fit for use in extreme cold or heat. The camera’s OptimizedIR infrared lights provide no-light security. Axis designed its dome with an infrared-shield to reduce reflections, keeping your evidence clear. Axis further improves video quality with Lightfinder 2.0, which provides naturalistic color reproduction beyond what the human eye can perceive in extreme low-light. Forensic WDR allows the camera to retain much more detail when confronted with high-contrast lighting.

Q3536-LVE is powered by the purpose-built ARTPEC-8 chip with deep learning processing unit. Axis includes a suite of its standard-defining analytics solutions, including Object Analytics, Live Privacy Shield, Speed Monitor, and Video Motion Detection. They also have designed Q3536-LVE with security in mind from the ground up with Edge Vault, a hardware-based cybersecurity solution that integrates secure boot, device ID, and more. It supports redundant power supply — PoE and DC — to reduce the risk posed to your security by power failures. Store video in camera using a microSD card or through the network via an NVR or NAS system. Q3536-LVE is compliant ONVIF Profiles G, M, S, and T. The package includes a weathershield to protect the camera from the elements.

Note: Axis Q3536-LVE 9 mm (02054-001) has a wide-angle 4.3-8.6 mm lens. If you want the same camera with a telephoto lens, search for Axis Q3536-LVE 9 mm (02224-001), which has an 11.3-29.4 mm lens.

Axis Q3536-LVE 9 mm Quick Specs:

  • System on a Chip (SOC): ARTPEC-8
  • Image Sensor: 1/1.8” progressive scan RGB CMOS
  • Video Resolution: up to 4 MP (2688 × 1512 px)
  • Frame Rate: up to 30 fps (with WDR), up to 60 fps (without WDR)
  • Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
  • Lens: varifocal 4.3-8.6 mm, f/1.5-2.4
  • Field of View:
    • Horizontal: 103° to 53°
    • Vertical: 56° to 30°
  • Camera Angle Adjustment:
    • Pan: ±180°
    • Tilt: -43° to +80°
    • Rotate: ±175°
  • Minimum Illumination:
    • Color: 0.06 lux
    • Infrared: 0 lux
  • Infrared Range: up to 130 ft
  • Audio: 2-way (full duplex)
  • Physical Connectors:
    • Ethernet: Gigabit RJ45 POE
    • Audio: 3.5 mm mic/line in, 3.5 mm line out
    • Terminal Block: for two configurable supervised inputs/digital outputs
    • Power: DC input
  • Power Over Ethernet (POE): 802.3at Type 2 Class 4
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF Profiles: G, M, S, T
  • Operating Temperature: -58°F to 131°F
  • Durability Ratings: IP66, IP6K9K, IK10+, NEMA 4X
  • Dimensions:
    • Height: 4.9 in
    • Diameter: 7.3 in
  • Weight (with Weathershield): 4.6 lb

Axis Q3536-LVE 9 mm Network Security Camera Package Contents:

  • Q3536-LVE 9 mm Camera
  • Installation Guide
  • Windows Decoder 1-User License
  • Drill Hole Template
  • Terminal Block Connector for I/O
  • Resistorx L-Key
  • Connector Guard
  • Cable Gasket
  • Conduit Adapter
  • Mounting Bracket
  • Weathershield

Axis Q3536-LVE Documentation:
