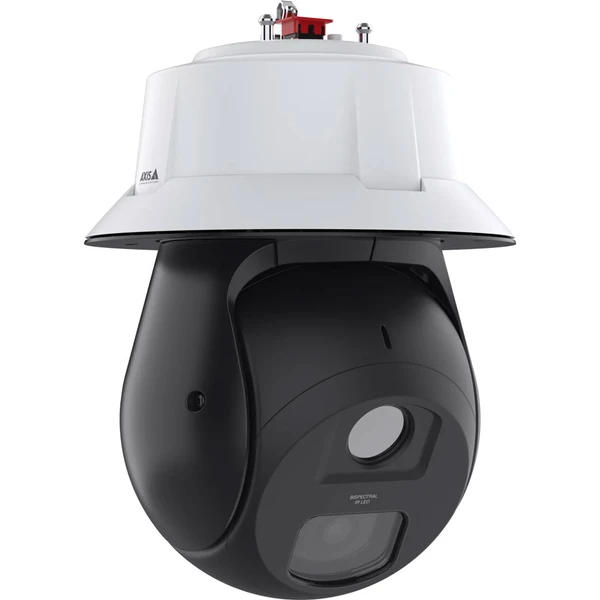

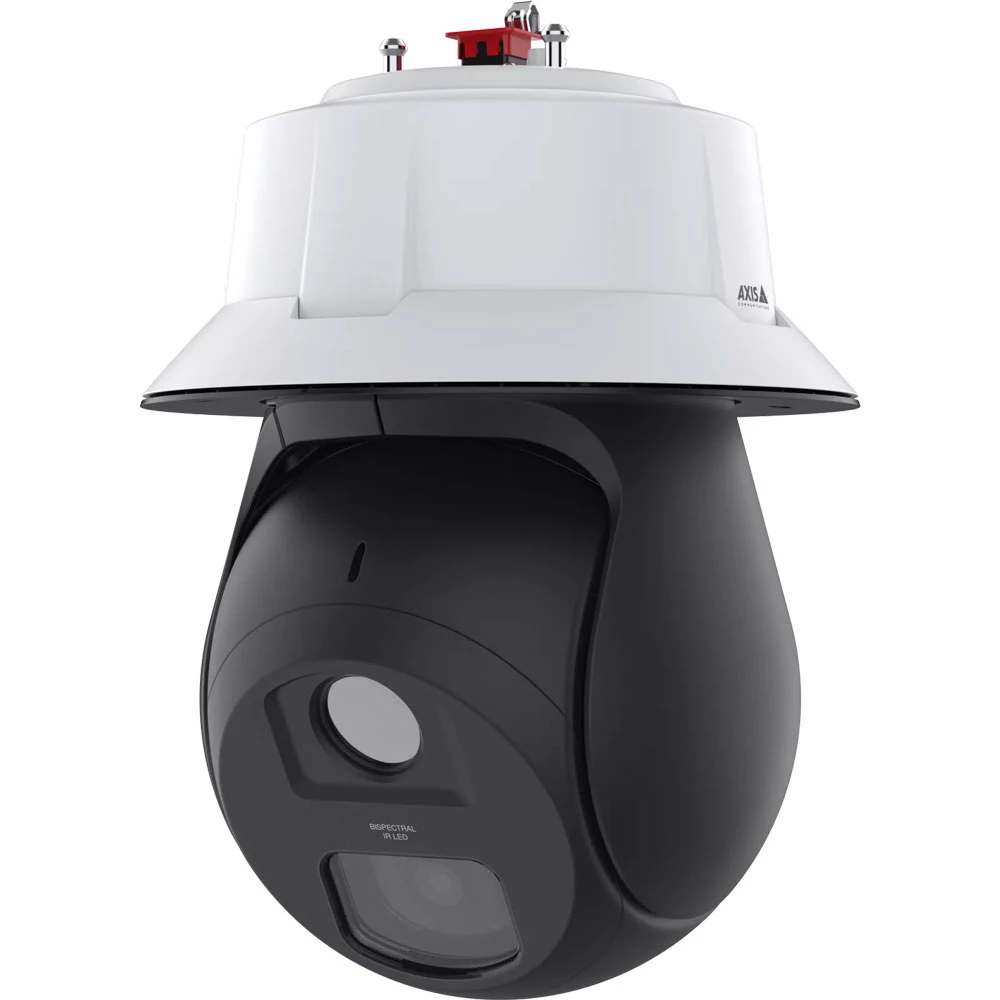

Axis Q6411-LE 8.3 fps Bispectral PTZ IP Camera - 03146-001

Axis Q6411-LE combines a 1080p Full HD PTZ camera with a powerful thermal camera for reliable detection and verification in every weather and lighting condition. Designed for outdoor installation in open spaces, Q6411-LE is an AI powered security camera. As a visual camera, it features 360° endless panning range, 110° tilting range, and 31x optical zoom; 12x digital zoom on top of the optical zoom means it supports up to 372x total zoom, perfect for picking out the small, necessary details. For the visual camera it uses a light-sensitive 1/2-inch sensor, which makes it fast and improves image sharpness. Additionally, the camera has built-in OptimizedIR infrared lights with a nearly 500 foot range: coverage in no-light conditions. Its 7 mm QVGA thermal camera has a fixed 55° field of view lens to let it view open areas. Axis designed Q6411-LE for extremely high thermal sensitivity while also reducing false alarms to a minimum.

Q6411-LE is an AI-powered camera. It runs professional-class analytics on the edge to improve accuracy while reducing network load. It comes with a wide range of analytics applications installed on camera: Axis Object Analytics, Axis Scene Metadata, Axis Video Motion Detection, AXIS OSDI Zone, Axis Image Health Analytics, and more. The camera can be used with Axis Perimeter Defender (not included) to enhance area detection using thermal technology. To reduce bandwidth and storage load further, it supports the ultra-efficient AV1 and H.265 (HEVC) video codecs, and you can store video on an SD card in the camera. Q6411-LE meets the IP66 and IK10 Standards. It supports safe start up down to -40°F and has a maximum temperature according to NEMA TS 2 (2.2.7) of 165°F.

Note: Axis Q6411-LE comes in two models: one that supports 8.3 fps thermal imagery and one that supports 30 fps. This model, Axis 03146-001, supports 8.3 fps thermal imagery. If you want the higher frame rate, search for Axis 03145-001.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q6411-LE 8.3 fps Quick Specs:

• System on a Chip (SoC): ARTPEC-9
• Visual Camera:
• Image Sensor: 1/2-in progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 x 1080 px)
• Frame Rate: up to 60 fps
• Lens: varifocal 6.91-214.64 mm, f/1.36-4.6
• Field of View:
• Horizontal: 59.6° to 1.0°
• Vertical: 36.3° to 0.5°
• PTZ:
• Pan: 360° endless
• Tilt: +20° to -90°
• Zoom: 31x optical + 12x digital = 372x total
• Minimum Illumination:
• Color: 0.06 lux
• B/W: 0.001 lux
• Infrared: 0 lux
• Infrared Range: up to 492 ft (150 m)
• Thermal Camera:
• Sensor: uncooled microbolometer 384 x 288 px
• Resolution: sensor is 384 x 288 px; can be scaled up to 768 x 576 px
• Frame Rate: up to 8.3 fps
• Lens: athermalized fixed 7 mm, f/1.18
• Field of View:
• Horizontal: 55°
• Vertical: 41°
• Video Compression: AV1; H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Audio: input/output through portcast technology
• Ethernet Port: Gigabit RJ45 PoE
• Power: 802.3bt Class 6 PoE (typical 13 W; max. 51 W)
• Storage: SD, SDHC, SDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -40°F to 131°F
• Durability Ratings: IP66, IK10, NEMA 4X

Axis Q6411-LE 8.3 fps Bispectral PTZ Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• IP66-Rated Network Connector
• Repaint Template
• Paint Paper

Axis Q6411-LE Documentation:

• Axis Q6411-LE Datasheet
• Axis Q6411-LE Installation Guide
• Axis Q6411-LE Dimension Drawing
