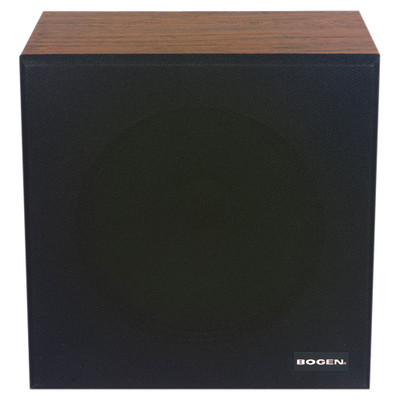

Bogen WBS8T725V Wall Baffle Speaker (Recessed Volume Control)

Bogen WBS8T725V is a 4W baffle speaker designed to be installed on walls as part of a paging system. An 8" cone speaker with a 6 oz. magnet and a 3/4" voice coil, the WBS8T725V provides plenty of punch. The frequency response range of 50 Hz to 12 kHz gives you clear audio, letting everyone understand what's being said.

The Bogen WBS8T725V speaker is set in a 9 1/2" x 9 1/2" particle board enclosure that slopes at an appealing 13.5° angle from top to bottom. The box is finished in simulated walnut, and the grille is a classy black cloth. Bogen WBS8T725V has a recessed volume control located on the bottom of the box for setting the audio level discreetly. Suitable for 25V or 70V amplifier paging systems, the WBS8T725V has power taps ranging from 4W to 1/8W.

Bogen WBS8T725V Wall Baffle Speaker Quick Specs:

• Speaker Type: 8" cone
• Magnet Weight: 6 oz.
• Volume Control: recessed volume control, power taps
• Power Taps: 4, 2, 1, 1/2, 1/4, 1/8
• Power Rating: 4W
• Compatibility: 25V, 70V
• Frequency Response: 50 Hz - 12 kHz
• Construction: particle board enclosure with cloth grille
• Finish: simulated walnut
• Dimensions: 9 1/2" W x 9 1/2" H x 5 1/4" D

Bogen WBS8T725V Wall Baffle Speaker with Recessed Volume Control Package Contents:

• Bogen WBS8T725V speaker
• Mounting hardware

Bogen WBS8T725V Documentation:

• Bogen WBS8T725V Technical Specifications
