Grandstream GSC3565 Smart Outdoor IP Video Intercom

Grandstream GSC3565 is an outdoor-ready, network-connected intercom with integrated 1080p Full HD camera. Combining a sleek, modern design with industrial-grade durability, the intercom meets the IP66 and IK10 Standards for weather, impact, and vandal resistance. Use GSC3565 wherever an ultra-reliable intercom with HD camera and HD audio performance is required: educational and healthcare institutions, villas and residential communities, business parks, industrial and logistics facilities, and more. As a SIP intercom, it is highly interoperable with numerous VoIP intercom and phone systems.

GSC3565 is simple to use: a single backlit button. The built-in camera with wide-angle lens lets personnel see who's calling clearly in lifelike detail: 1080p Full HD resolution. GSC3565 has dual microphones for clear voice pickup and a powerful 10 W loudspeaker for clear voice broadcasting, improving comprehension on full-duplex conversations. On top of its exceptional audio and video performance, the intercom provides extensive I/O connectors, letting you integrate a range of peripherals, including sirens, locks, sensors, and more; it has connectors with an integrated Solid State Relay (SSR) to resist magnetic interference and enhance electronic tampering defense, making GSC3565 suitable for high-security lock control. Connect the IP video intercom to the network via Ethernet cable; power it via PoE+ or external power supply (not included). GSC3565 comes with a surface wall mount; flush wall mount (GSC356X-FM) and pole mount kit (GSC356X-PM) are available separately.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Grandstream GSC3565 Quick Specs:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• Camera:
• Sensor: 1/3-in 4 MP CMOS
• Resolution: up to 1080p Full HD at 30 fps
• Field of View: 127° horizontal
• Microphones: 2x array
• Voice Pickup Range: up to 19.68 ft (6 m)
• Speaker: 10 W
• Physical Connectors:
• Ethernet: 1x 10/100 RJ45

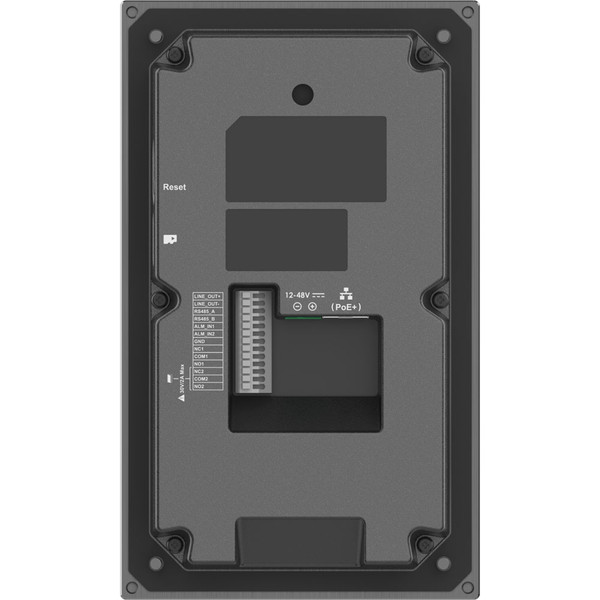

• I/O Terminal Block: (see pictures)
• TF Card: 1x TF Card slot (up to 256 GB)
• Power: 12-48V DC/2 A
• Power: 802.3at Class 4 PoE+ or 12-48V DC/2 A power supply (not included)
• Durability Ratings: IP66, IK10

Grandstream GSC3565 Smart Outdoor Intercom Package Contents:

• Intercom
• Positioning Sticker
• Wall Bracket
• Wrench
• Security Bolt
• 5x ST 3.5 x 32 mm Screws and Screw Anchors
• 5x M4 x 14 mm Screws
• 2x Dual-Port Waterproof Silicone Plugs
• 1x M3 x 6 mm Screw
• Quick Installation Guide
• Regulatory Paper

Grandstream GSC3565 Documentation:

• Grandstream GSC3565 Datasheet
• Grandstream GSC3565 Installation Guide
