Grandstream GSC3560 Smart Outdoor IP Intercom

Grandstream GSC3560 is an outdoor-rated IP intercom that combines sleek, modern design with industrial-grade durability. Use GSC3560 everywhere you need an ultra-reliable door phone: schools, residential communities, villas, business parks, medical campuses, and more. The intercom is IP66 and IK10 Rated for resistance against dust and water ingress and against vandalism and shocks. As a SIP intercom, GSC3560 is compatible with a wide range of VoIP phone systems and IP intercom systems.

GSC3560 features a single backlit button for the easiest of usability. It uses dual microphones with extended reach and powerful 10 W speaker for high-fidelity communications; audio performance is further improved with advanced AI-powered noise suppression. In addition to its audio performance, it has extensive I/O connectors for integrating peripherals like sirens, locks, sensors, and more. It has connectors with an integrated Solid State Relay (SSR), which combats magnetic interference to improve defense against electronic tampering, making the intercom suitable for high-security lock control. Connect GSC3560 to the network via Ethernet cable; power it via PoE+ or external power supply (not included). It comes with a surface wall mount; flush wall mount (GSC356X-FM) and pole mount kit (GSC356X-PM) are available separately.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Grandstream GSC3560 Quick Specs:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• Microphones: 2x array
• Voice Pickup Range: up to 19.68 ft (6 m)
• Speaker: 10 W
• Physical Connectors:
• Ethernet: 1x 10/100 RJ45

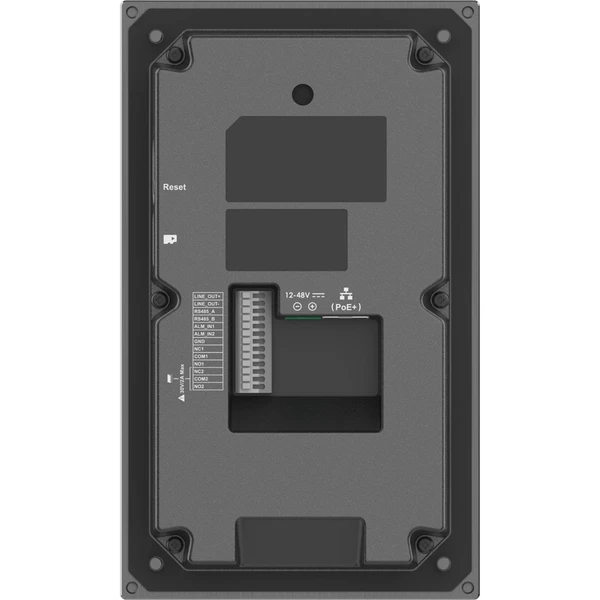

• I/O Terminal Block: (see pictures)
• TF Card: 1x TF Card slot (up to 256 GB)
• Power: 12-48V DC/2 A
• Power: 802.3at Class 4 PoE+ or 12-48V DC/2 A power supply (not included)
• Durability Ratings: IP66, IK10

Grandstream GSC3560 Smart Outdoor Intercom Package Contents:

• Intercom
• Positioning Sticker
• Wall Bracket
• Wrench
• Security Bolt
• 5x ST 3.5 x 32 mm Screws and Screw Anchors
• 5x M4 x 14 mm Screws
• 2x Dual-Port Waterproof Silicone Plugs
• 1x M3 x 6 mm Screw
• Quick Installation Guide
• Regulatory Paper

Grandstream GSC3560 Documentation:

• Grandstream GSC3560 Datasheet
• Grandstream GSC3560 Installation Guide
