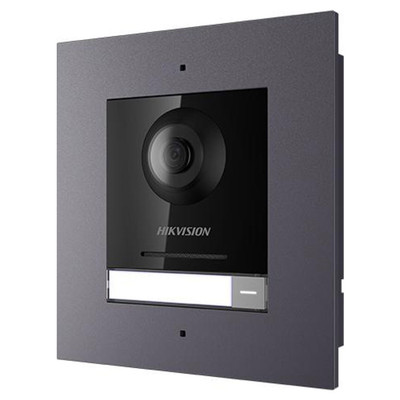

Hikvision DS-KD8003-IME1 Video Intercom Door Station Module

Hikvision DS-KD8003-IME1 is a video intercom module with integrated 1080p Full HD camera for professional door entry control. It comes with a fisheye camera with infrared supplement light to enable visual confirmation of visitors, providing more secure access control. DS-KD8003-IME1 is a full-duplex intercom with physical button that you can label with a nametag. It features noise suppression and echo cancellation to improve audio performance.

As part of the Hikvision Module Door Station Series, DS-KD8003-IME1 can act as the main unit for up to 8 sub-modules like keypad or card reader. The intercom module supports a tampering alarm to improve physical device security, as well as a range of interfaces for connecting peripherals like a door strike.

Hikvision DS-KD8003-IME1 Quick Specs:

• Ethernet Port: 10/100
• PoE 802.3af
• Additional Interfaces:
• Module Connector: 1
• I/O Inputs: 4
• Debug: 1
• Relays: 2
• Tampering Alarm: 1
• Video Resolution: up to 1080p
• Field of View: 180°H x 96°V
• Video Codecs: H.264
• Microphone: built-in, omnidirectional
• Speaker: built-in
• Audio Codecs: G.711u
• Operating Temperature: -40°F to 140°F
• Durability Rating: IP65

Hikvision DS-KD8003-IME1 Video Intercom Module Package Contents:

• Hikvision DS-KD8003-IME1 Module

Note: Hikvision DS-KD8003-IME1 is a bare module. It requires a frame (not included) for mounting.

Hikvision Hikvision DS-KD8003-IME1 Series Documentation:

• Hikvision Hikvision DS-KD8003-IME1 Data Sheet
