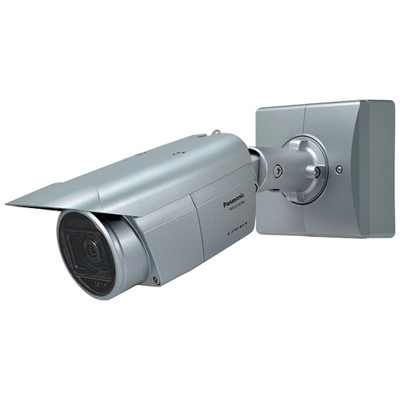

Panasonic WV-S1570L 4k IR Vandal Outdoor Box IP Camera

(You save $165.98 )

Panasonic WV-S1570L is a professional security camera that gives you 4k Ultra HD detail and advanced technology. Designed for outdoor installation, WV-S1570L uses a large True 4k sensor and lens to give you class-leading protection. WV-S1570L features color night vision technology to give you video with natural coloration in extreme low-light. It also has on-board infrared lights with a 131ft range for surveillance in no-light conditions.

Panasonic WV-S1570L features Intelligent Auto technology, which means the camera actively monitors the environment and adjusts settings to adapt to changes, so you get improved video quality with no extra work. For example, Auto Shutter speed helps you get a clearer picture of moving objects like cars. H.265 Smart Coding uses much less bandwidth and less storage to reduce network load. WV-S1570L is IK10 and IP66 rated against vandalism and the weather. The camera is FIPS 140-2 Level 1 compliant for enterprise-class security. Store video in camera using an SD card or through the network using an NVR or NAS solution. WV-S1570L is compliant with ONVIF Profile G, Profile S, and Profile T. WV-S1570L comes bundled with an i-VMD license.

Panasonic WV-S1570L Quick Specs:

  • Connectivity Type: IP
  • Ethernet Ports: 1x 10/100
  • PoE: 802.3af Class 0
  • Additional Interfaces:
    • Monitor Output: VBS
    • Audio Input: 3.5mm stereo mini jack
    • Audio Output: 3.5mm stereo mini jack
    • External I/O Connectors: 3x alarm inputs
  • Sensor: 1/1.8" CMOS
  • Resolution: up to 4k @ 30fps
  • Lens: varifocal 4.3-8.6mm, f/1.5-2.4
  • Field of View:
    • Horizontal: 53° to 104°
    • Vertical: 30° to 56°
  • Video Codecs: H.265, H.264, JPEG
  • Angle Adjustment:
    • Ceiling Mounting:
      • Pan: ±180°
      • Tilt: 0° to +100°
      • Yaw: -190° to +100°
    • Wall Mounting:
      • Pan: ±100°
      • Tilt: ±100°
      • Yaw: -190° to +100°
  • Minimum Illumination:
    • Color: 0.09 lux
    • B/W: 0.05 lux
    • Infrared: 0 lux
  • Infrared Range: up to 131ft (40m)
  • Audio Codecs: G.726, G.711, AAC-LC
  • Edge Storage: SD, SDHC, SDXC (up to 256GB)
  • ONVIF: Profile G, Profile S, Profile T
  • Operating Temperature: -40°F to 140°F
  • Durability Ratings: IP66, NEMA Type 4X, IK10

Panasonic WV-S1570L Network Security Camera Package Contents:

  • Panasonic WV-S1570L IP Camera
  • Installation Hardware
  • Installation Guide
  • Warranty Card
