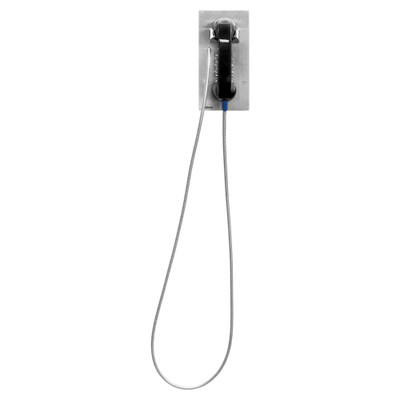

Viking K-1900-8-IP Auto-Dialling VoIP Panel Phone with Keypad

Viking K-1900-8-IP is a vandal-resistant panel phone with heavy duty metal keypad. K-1900-8-IP can be used as a hot-line phone by programming it to automatically dial a number when the receiver is lifted. Alternately, it can be used as a multi-number auto-dialer, supporting up to 250 phone numbers, or as a regular manual dial phone. The phone calls are sent through your VoIP system using the SIP communications protocol. The phone is interoperable with a wide range of VoIP platforms, including 3CX, Asterisk, and Cisco UCM. K-1900-8-IP features two sets of 2-amp relay contacts for controlling gates or doors.

Viking K-1900-8-IP has a front panel made out of brushed stainless steel with laser-etched graphics, a heavy duty metal hook switch, 36" armored cable, and Torx T-10 security screws to prevent tampering. Program the phone through the network. The phone is PoE compliant to reduce infrastructure needs. This model is intended for indoor placement. For outdoor placement, see Viking K-1900-8-IP-EWP with Enhanced Weather Protection. K-1900-8-IP is flush-mounted using the included zinc-plated steel rough-in box. Surface mount the phone using the Viking VE-5x10 or VE-5x20-SS box.

Viking K-1900-8-IP Panel Phone Quick Specs:

• Connectivity Type: VoIP/IP
• Communications Protocol: SIP
• Ethernet Port: 1x 10/100
• PoE: 802.3af Class 2
• Connectors: 14x gel-filled butt connectors
• Audio Codecs: G.711μ/a, G.722
• Operating Temperature: -40°F - 140°F
• Dimensions: 5" x 10" x 4"
• Finish: brushed stainless steel
• Mounting: flush or surface
• Surface Mount: requires Viking VE-5x10 or VE-5x10-SS box

Viking K-1900-8-IP VoIP Panel Phone Package Contents:

• K-1900-8-IP phone
• Rough-in box
• 8x T-10 Torx security screws with drive bit

Viking K-1900-8 IP Series Documentation:

• Viking K-1900-8 Product Manual
• Viking K-1900-8 Quick Start Manual
