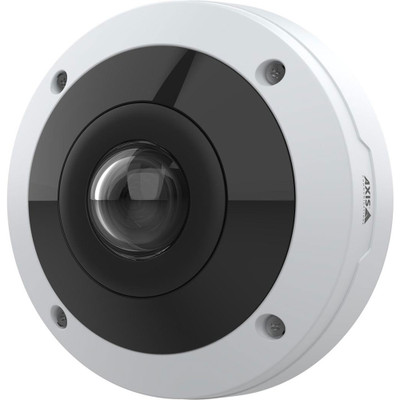

Axis M4317-PLR 6 MP Panoramic IR Dome Mobile IP Camera - 02833-001

Axis M4317-PLR is a panoramic mini-dome IP camera with fisheye lens to offer 180° or 360° overview from a single camera. Designed for onboard installation in vehicles like buses, M4317-PLR has been ruggedized to withstand vibrations and shocks. The camera complies with industry bus regulations. It comes with a 1.1 mm stereographic lens that is factory-focused for professional performance out of the box. Sharpdome technology reduces distortion compared to similar dome cameras. Digital roll functionality lets you adjust the camera rotation from a distance. It offers numerous viewing modes, including overview, panorama, quad view, corner right/left, and more. M4317-PLR has built-in OptimizedIR infrared lights for surveillance in complete darkness. You can control the infrared LEDs individually to reduce reflections and get the best picture possible.

M4317-PLR is powered by the purpose-built ARTPEC-8 System on a Chip for exceptional performance, including advanced features like Object Analytics, which comes pre-installed. Object Analytics automatically detects and classifies humans and vehicles, including types of vehicles, using AI-based algorithms. On top of analytics, the camera has security built-in from the ground floor with Edge Vault, a hardware-based cybersecurity platform for protecting both the device and the whole IP camera system. Store video in camera using a microSD card or through the network. The polycarbonate, hard-coated dome casing makes it IP66 and IK10 rated. M4317-PLR is compliant with ONVIF Profiles G, M, S, and T.

© 2024 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M4317-PLR Quick Specs:

• System on a Chip (SOC): ARTPEC-8
• Image Sensor: 1/1.8” progressive scan RGB CMOS
• Video Resolution: up to 6 MP (2560 × 1920 px)
• Frame Rate: up to 60 fps
• Video Compression: H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 1.1 mm, f/2.2
• Field of View:
• Horizontal: 182°
• Vertical: 182°
• Camera Angle Adjustment:
• Digital Roll: ±180°
• Minimum Illumination:
• Color: 0.16 lux
• B/W: 0.03 lux
• Infrared: 0 lux
• Infrared Range: up to 65.6 ft
• Audio: via portcast technology
• Physical Connectors:
• Ethernet: 10/100 RJ45 POE
• I/O: terminal block for 1 supervised alarm input and 1 output
• Audio & I/O: via portcast technology
• Power Over Ethernet (POE): 802.3af/at Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 122°F
• Durability Ratings: IP66, IK10, NEMA 4X
• Dimensions:
• Height: 2.7 in
• Diameter: 5.9 in
• Weight: 1.9 lb

Axis M4317-PLR Panoramic Onboard Network Security Camera Package Contents:

• M4317-PLR Camera
• Installation Guide
• Terminal Block Connector
• Connector Guard
• Cable Gaskets
• Cable Hole Lid
• Owner Authentication Key

Axis M4317-PLR Documentation:

• Axis M4317-PLR Datasheet
• Axis M43-PLR Series Installation Guide
