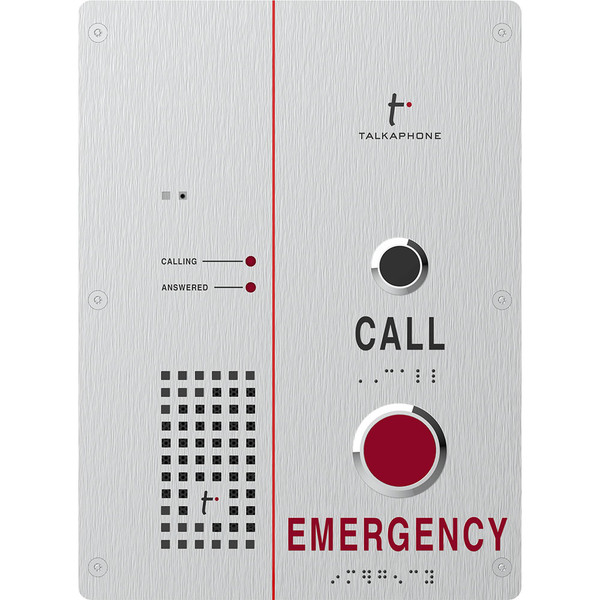

Talkaphone ETP-520EC Analog Call and Emergency Station

Talkaphone ETP-520EC is an analog intercom with two buttons: CALL and EMERGENCY. Designed for outdoor installation, ETP-520EC is ADA compliant with raised lettering and braille writing for each button. It has LED indicator lights for call status and it can identify the call station with a pre-recorded message that it plays to personnel when a call button is pressed. ETP-520EC works both as an emergency phone and as a standard intercom with the buttons clearly distinguished: the EMERGENCY button is larger and red. You can also use its line level output to connect to a compatible amplifier or paging system in order to have it receive audio pages, making it also part of a public address or emergency alert system.

ETP-520EC is an analog call station. You can program up to 5 phone numbers for it to call; it will cycle through the numbers in sequence upon a button being pressed. The call station has been ruggedized. Its faceplate is made from vandal-resistant marine-grade stainless steel and it is attached using Torx security screws; ETP-520EC meets the IP66 Standard against dust and water ingress. It is phone line powered so no battery or power supply is necessary. You can connect peripherals like a blue light beacon or an access control panel using its two auxiliary relay outputs.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Talkaphone ETP-520EC Quick Specs:

• Construction: #4 brushed 316 stainless steel faceplate
• Auxiliary Input: 1x relay input
• Auxiliary Outputs: 2x relay outputs
• Line Level Output: 1x 600 Ohm line level audio output
• Durability Rating: IP66

Talkaphone ETP-520EC Analog Call and Emergency Station Package Contents:

• Call Station
• 6x #10-24 x 3/4-in T20 Torx Screws

Talkaphone ETP-520EC Documentation:

• Talkaphone ETP-520 Series Datasheet
• Talkaphone ETP-520 Series Quick Installation Guide
