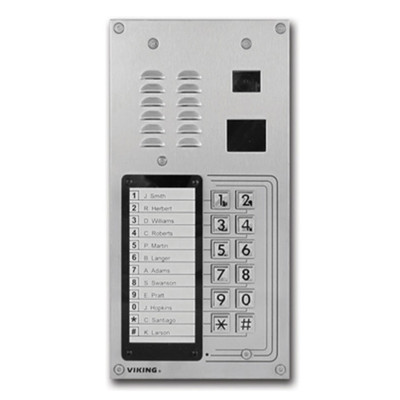

Viking K-1275 Video Entry Phone with Keypad & Card Reader

Viking K-1275 is a rugged two-way intercom with integrated color camera, keypad and proximity card reader. Perfect for apartments, offices, gated communities and similar deployments, the K-1275 allows for 12 primary phone numbers with single-button dialing. The integrated directory clearly indicates what button to dial. The built-in CCTV color camera provides extra security. It has a pinhole lens for capturing a wide-angle view. K-1275 also has an integrated 125 kHz Wiegand proximity card reader for enabling keyless entry using a compatible card or keyfob.

Viking K-1275 has a 14 gauge stainless steel faceplate with 12 heavy duty buttons. Viking includes Torx T-10 security screws for further resistance to tampering. The door phone includes an internal relay for a door strike, giving you a complete secure door entry solution. For increased resistance to the weather, look to the Viking K-1275-EWP, which is the same device with Enhanced Weather Protection.

Viking K-1275 Entry Phone Quick Specs:

• Connectivity Type: analog
• Connectors: 19x gel-filled butt connectors
• Proximity Card Reader: 125 kHz 26-bit Wiegand
• Camera: analog NTSC
• Sensor: 1/4" color CMOS
• Lens: 2.1mm, conical pinhole
• Video Resolution: up to 640x480 at 30 fps
• Field of View: 80°H x 60°V, 100° diagonal
• Operating Temperature: -30°F - 150°F
• Dimensions: 5" x 10" x 2.5"
• Mounting: flush or surface
• Surface Mount: requires Viking VE-5x10 box

Viking K-1275 Entry Phone with CCTV Camera Package Contents:

• K-1275 phone
• 12V DC power adapter
• Zinc-plated steel rough-in box
• 8x T-10 Torx security screws and drive bit

Viking K-1275 Series Documentation:

• Viking K-1275 Series Product Manual
