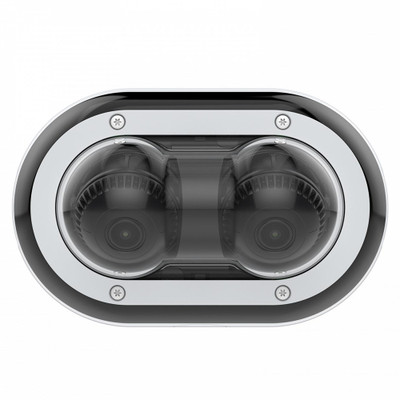

Axis P4705-PLVE 1080p Outdoor Panoramic IP Camera - 02415-001

Axis P4705-PLVE is a dual sensor panoramic camera with 360° IR illumination, and two 2 MP channels. Some features are Axis Lightfinder – color images recorded in near darkness, Forensic WDR – clarity when there’s both dark and light areas in the image. With a frame rate of 30 fps, Axis P4705-PLVE lets you capture wide and zoomed in angles, giving a detailed and clear image. Delivers a 2.5x zoom to give you all the details of your desired area. Even though there are two cameras, there is only one camera to install, one IP address, and one video management software (VMS). It also features Axis Object Analysis, allowing the panoramic camera to easily pick up on humans and cars, or other vehicles. An ideal camera for indoor and outdoor surveillance, Axis P4705-PLVE includes an option IP66/IP67 rated weather shield.

With an ARTPEC-8 chip, this panoramic camera includes a deep learning processing unit (DLPU), to enable processing and storage capabilities. Includes Axis Zipstream with H.264 and H.265, bandwidth and storage requirements are reduced, without the reduction of image quality. Axis P4705-PLVE conveys valuable metadata information, meaning it facilitates fast, easy, and efficient forensic search capabilities in live or recorded video.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P4705-PLVE Panoramic Camera Quick Specs:

• System on a Chip (SoC): ARTPEC-8
• Image Sensor: 2 x 1/2.8" progressive scan RGB CMOS
• Video Resolution: 2x 1920x1080 (2x HDTV 1080p)
• Frame Rate: Up to 60/50 fps (60/50 Hz) in all resolutions
• Lens: Varifocal, 3.3–8.1 mm, F1.9–3.2
• Field of View:
• Horizontal: 107° -39°
• Vertical: 55° -22°
• Minimum Focus Distance: 1.6 ft (0.5 m)
• Minimum Illumination:
• Color: 0.15 lux at 50 IRE, F1.9
• B/W: 0 lux at 50 IRE, F1.9
• Audio streaming: Audio in, simplex. Two-way audio via edge-to-edge technology
• Audio input/output: External microphone input or line input, ring power, digital audio input, automatic gain control. Network speaker pairing
• Physical Connectors:
• Power over Ethernet (PoE): IEEE802.3at Type 2 Class 3 Typical 6.2 W, max 12.95 W. Power over Ethernet (PoE) IEEE802.3at Type 2 Class 4 Typical 8.3 W, max 17.5 W
• Network: Shielded RJ45 10/100/1000 PoE 3.5 mm mic/line in
• Operating Temperature: -22°F to 122°F
• Dimensions:
• Height: 3.5 in
• Width: 5.2 in
• Length: 8.2 in
• Weight: 2.1 lb

Axis P4705-PLVE Panoramic Camera Package Contents:

• Axis P4705-PLVE Panoramic Camera
• Installation guide
• Windows® decoder 1-user license
• Connector kit
• Weathershield
• Connector guard

Axis P4705-PLVE Panoramic Camera Documentation:

• Axis P4705-PLVE Datasheet
