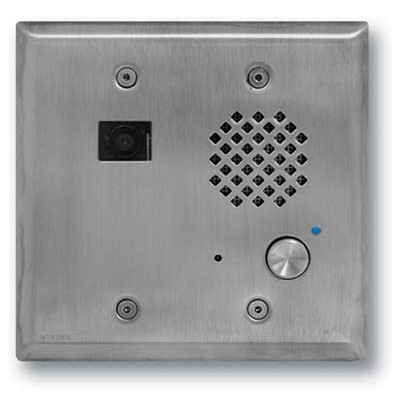

Viking E-65-SS-EWP Video Door Phone in Stainless Steel

The Viking E-65-SS-EWP includes a speakerphone and color video camera. EWP, or enhanced weather protection, lends the device IP66-rated weatherproofing from wind, rain and dust. Mount the door phone outside to communicate with guests and visitors, and view them through the camera. The faceplate protects the device from vandalism and the lens over the camera is scratch resistant.

Easily find the Viking E-65-SS-EWP door phone in the dark by following the blue LED located over the call button. The light also indicates call status, such as line ringing or off-hook. Intelligent call progress detection includes CPC disconnect, and programmable functions for silence, busy signal or time out. Install the phone in a standard double gang box, or surface mount it with the optional VE-5x5 box.

Viking E-65-SS-EWP Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Camera: 1/4 CMOS image sensor
• Video Resolution: 640x480 @ 30 fps
• Lens: 2.1mm
• Field of View: 80° horizontal, 60° vertical
• Operating Conditions: IP66, -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-65-SS-EWP Door Intercom Package Contents:

• Viking E-65-SS-EWP door phone
• Faceplate in stainless steel
• 5x 3-wire gel-filled butt connectors
• Circuit board mounting plate
• 1/4 thick foam faceplate gasket
• 2x double gang adapter plates
• LED light pipe

Viking E-65 Series Documentation:

• Viking E-65 Series Product Manual
