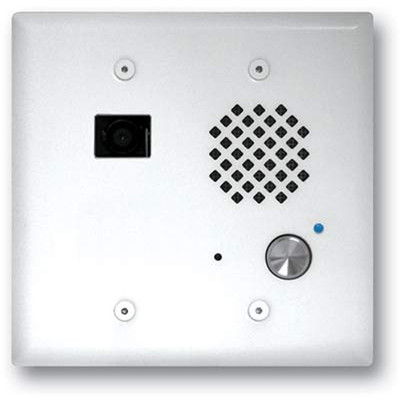

Viking E-65-WH-EWP Video Door Phone in White

Flush mount the Viking E-65-WH-EWP door phone in a standard double gang box. The phone features enhanced weather protection for outdoor deployment, shielding the electronics from elements like wind and rain. The phone can also be surface mounted in the optional VE-5x5 box. In the dark, the phoneâ blue LED light lets you easily find the call button. Under nearly any condition, the phone provides reliable two-way communications.

Also built into the Viking E-65-WH-EWP phone is a color video camera. See who you’re talking to before you open the door. The faceplate and camera lens are vandal- and scratch-resistant for accidental or purpose-minded damage. Adjust the phoneâ intelligent call progress detection, volume controls and other features.

Viking E-65-WH-EWP Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Camera: 1/4 CMOS image sensor
• Video Resolution: 640x480 @ 30 fps
• Lens: 2.1mm
• Field of View: 80° horizontal, 60° vertical
• Operating Conditions: IP66, -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-65-WH-EWP Door Intercom Package Contents:

• Viking E-65-WH-EWP door phone
• Faceplate in satin white
• 5x 3-wire gel-filled butt connectors
• Circuit board mounting plate
• 1/4 thick foam faceplate gasket
• 2x double gang adapter plates
• LED light pipe

Viking E-65 Series Documentation:

• Viking E-65 Series Product Manual
