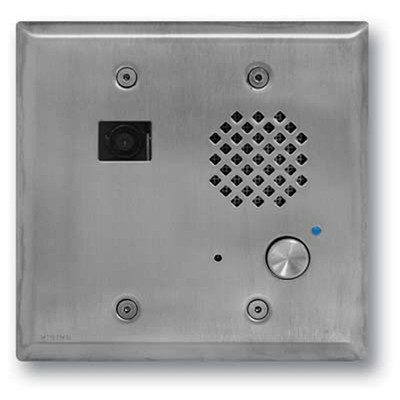

Viking E-65-SS Video Door Phone in Stainless Steel

The Viking E-65-SS door phone features a built-in speakerphone and color video camera. The faceplate includes a brushed stainless steel finish and vandal resistant construction. Easily find the phone in the dark by following the blue LED light. Press the call button to quickly reach someone inside the building or on the other side of the door. The camera lets you view who is calling so you know exactly who you are talking to or possibly letting in.

Mount the Viking E-65-SS phone in a standard double gang box. The phone is also compatible with an optional VE-5x5 box. Program the phoneâ intelligent call progress detection tools, including CPC disconnect, and options for silence, busy signal or time out. Also control the phoneâ microphone and speaker volumes.

Viking E-65-SS Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Camera: 1/4 CMOS image sensor
• Video Resolution: 640x480 @ 30 fps
• Lens: 2.1mm
• Field of View: 80° horizontal, 60° vertical
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-65-SS Door Intercom Package Contents:

• Viking E-65-SS door phone
• Faceplate in stainless steel
• 5x 3-wire gel-filled butt connectors
• Circuit board mounting plate
• 1/4 thick foam faceplate gasket
• 2x double gang adapter plates
• LED light pipe

Viking E-65 Series Documentation:

• Viking E-65 Series Product Manual
