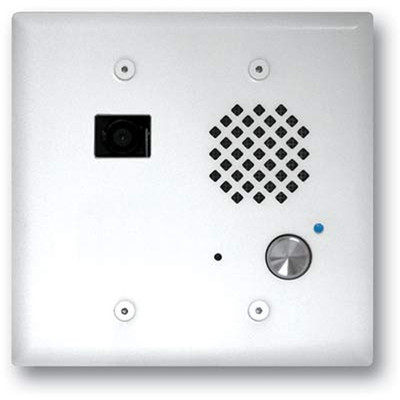

Viking E-65-WH Video Door Phone in White

The Viking E-65-WH entry phone provides two-way communications with people outside of your door. Watch live color video of visitors and confirm their identity before you let them in. This entry phone plays a critical role in any security strategy. The phoneâ faceplate features a vandal resistant construction and a scratch resistant lens to prevent damage to the various pieces and components.

A blue LED is located over the phone call button, easily findable in the dark and used to indicate call statuses. Program the Viking E-65-WH phone intelligent call progress detection to hang up during CPC, silence, busy signal or time out. Flush mount the phone, or surface mount it to the optional VE-5x5 box.

Viking E-65-WH Door Phone Quick Specs:

• Connectivity: analog
• Power: via telephone line
• CPC Disconnect: 300ms minimum
• Volume: max. 62db @ 1m
• Camera: 1/4 CMOS image sensor
• Video Resolution: 640x480 @ 30 fps
• Lens: 2.1mm
• Field of View: 80° horizontal, 60° vertical
• Operating Conditions: -30° to 150° F
• Dimensions: 2.84 x 1.8 x 1.65 (phone)
• 4.875 x 4.938 x 0.17 (faceplate)
• Mounting: flush in double gang box

Viking Electronics E-65-WH Door Intercom Package Contents:

• Viking E-65-WH door phone
• Faceplate in satin white
• 5x 3-wire gel-filled butt connectors
• Circuit board mounting plate
• 1/4 thick foam faceplate gasket
• 2x double gang adapter plates
• LED light pipe

Viking E-65 Series Documentation:

• Viking E-65 Series Product Manual
