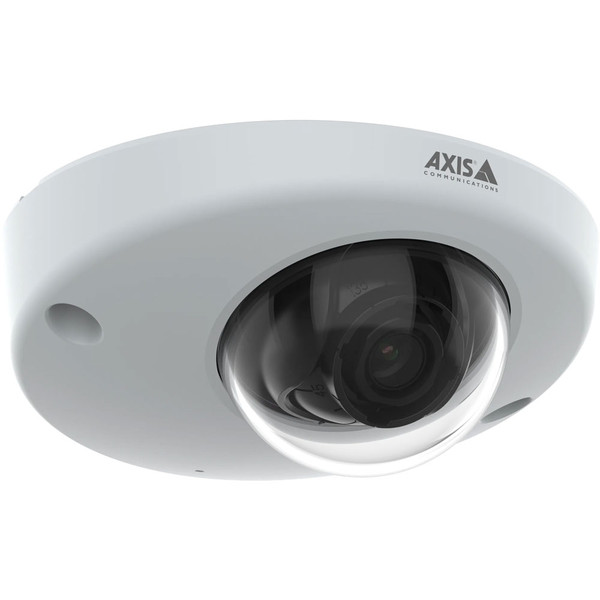

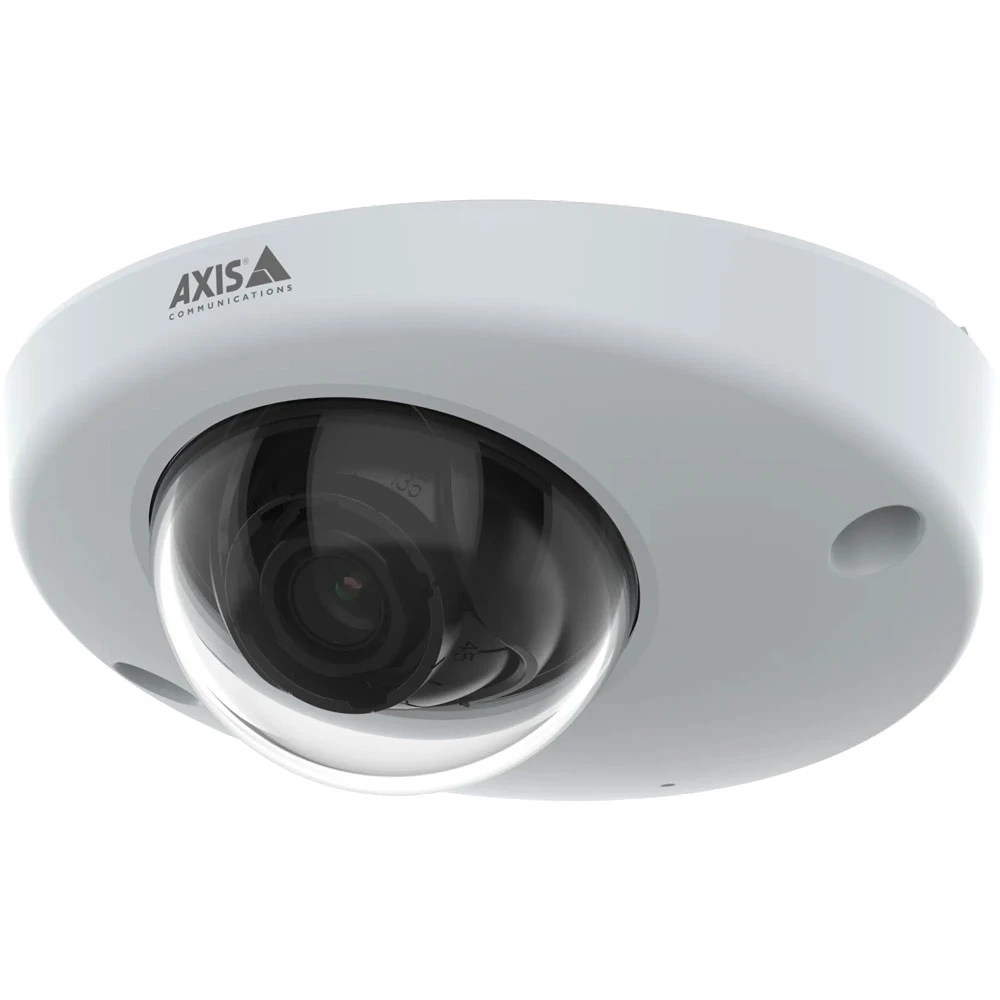

Axis M3945-R M12 3.6 mm 2 MP Indoor Onboard IP Camera - 03375-001

Axis M3945-R is a compact dome camera built for onboard installation in buses and similar vehicles. M3945-R takes detailed video at high frame rates for use in fast-movement environments like traffic: 1080p Full HD and up to 60 fps. Additionally, it has a built-in microphone, which lets it record audio as well as video, enhancing the utility of the camera. This model has a 3.6 mm lens and M12 connector. It meets numerous transportation industry certifications, including UNECE R10, UNECE R118, and IEC 60721-3-5 5M3; it meets the IP66/67 and IK10 Standards for durability. For onboard surveillance in buses, M3945-R is a purpose-built solution.

M3945-R is also intelligent: AI-powered. It features advanced technologies like Lightfinder 2.0 and Forensic WDR for improving image-producing performance in difficult lighting situations like extreme low-light and extreme high-contrast. Axis has developed user-selectable scene profiles like forensic, vivid, or traffic overview, which let you optimize image settings with no additional effort. And M3945-R is secure: protected with Axis Edge Vault, a hardware-based cybersecurity platform that includes secure key storage, secure boot, video tampering detection, and more. It also has a microSD card slot for recording video in camera. M3945-R was designed to make upgrading older Axis onboard cameras simple, because it has the same form-factor as previous models and is compatible with backplates and accessories for these older cameras.

Note: Axis M3945-R comes in four models: with either a 2.8 mm or 3.6 mm lens, and with either an RJ45 or M12 connector. This model, Axis 03375-001, comes with a 3.6 mm lens and an M12 connector.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M3945-R M12 3.6 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 2 MP (1920 x 1080 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.6 mm, f/2.0
• Field of View:
• Horizontal: 83°
• Vertical: 44°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• M12: female, rugged, D-coded with rotatable coupling nut
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis M3945-R M12 3.6 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis M3945-R Documentation:

• Axis M3945-R Datasheet
• Axis M3945-R Installation Guide
