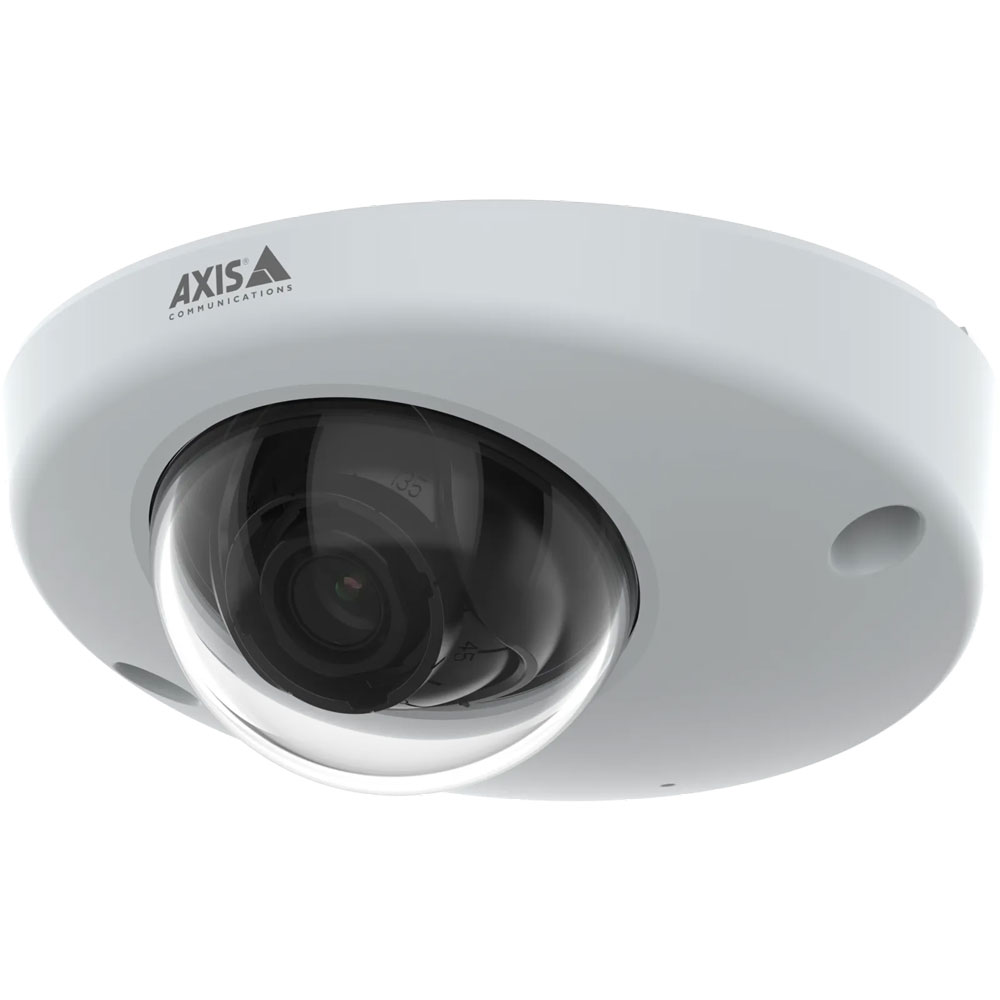

Axis P3945-R 2.8 mm 2 MP Indoor Onboard IP Camera - 03376-001

Axis P3945-R is a compact IP camera for HD video surveillance in trains, trolleys, and similar moving vehicles. This model of P3945-R has a 2.8 mm lens. P3945-R takes 1080p Full HD (2 MP) video using a pro-grade camera sensor and wide-angle lens; it takes video at up to 60 fps for excellent detail in fast-movement scenarios. It also has a built-in microphone, so you can add a second layer to your video security system. P3945-R is compliant with numerous industry standards including EN 50155 and EN 45545, plus it meets durability standards: IP66/67 and IK10 Rated.

P3945-R features advanced technologies to improve image performance across a range of standard challenges. Lightfinder 2.0 lets the camera reproduce colors much more accurately in extreme low-light. Forensic WDR lets the camera retain vital detail in high-contrast lighting. Axis has also included user-selectable scene profiles to let you effortlessly fine-tune image quality based on scenario: forensic, vivid, traffic overview. Axis Edge Vault protects the camera: a hardware-based cybersecurity platform with secure key storage, secure boot, video tampering detection, and more. The compact dome camera has a microSD card slot for local video recording. Upgrade your existing Axis onboard cameras easily: P3945-R has the form-factor, backplate, and accessories as earlier models.

Note: Axis P3945-R is available with either a 2.8 mm or 3.6 mm lens. This model, Axis 03376-001, comes with a 2.8 mm lens.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3945-R M12 2.8 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 2 MP (1920 x 1080 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 2.8 mm, f/2.0
• Field of View:
• Horizontal: 99°
• Vertical: 55°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• M12: female, rugged, D-coded with rotatable coupling nut
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis P3945-R M12 2.8 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis P3945-R Documentation:

• Axis P3945-R Datasheet
• Axis P3945-R Installation Guide
