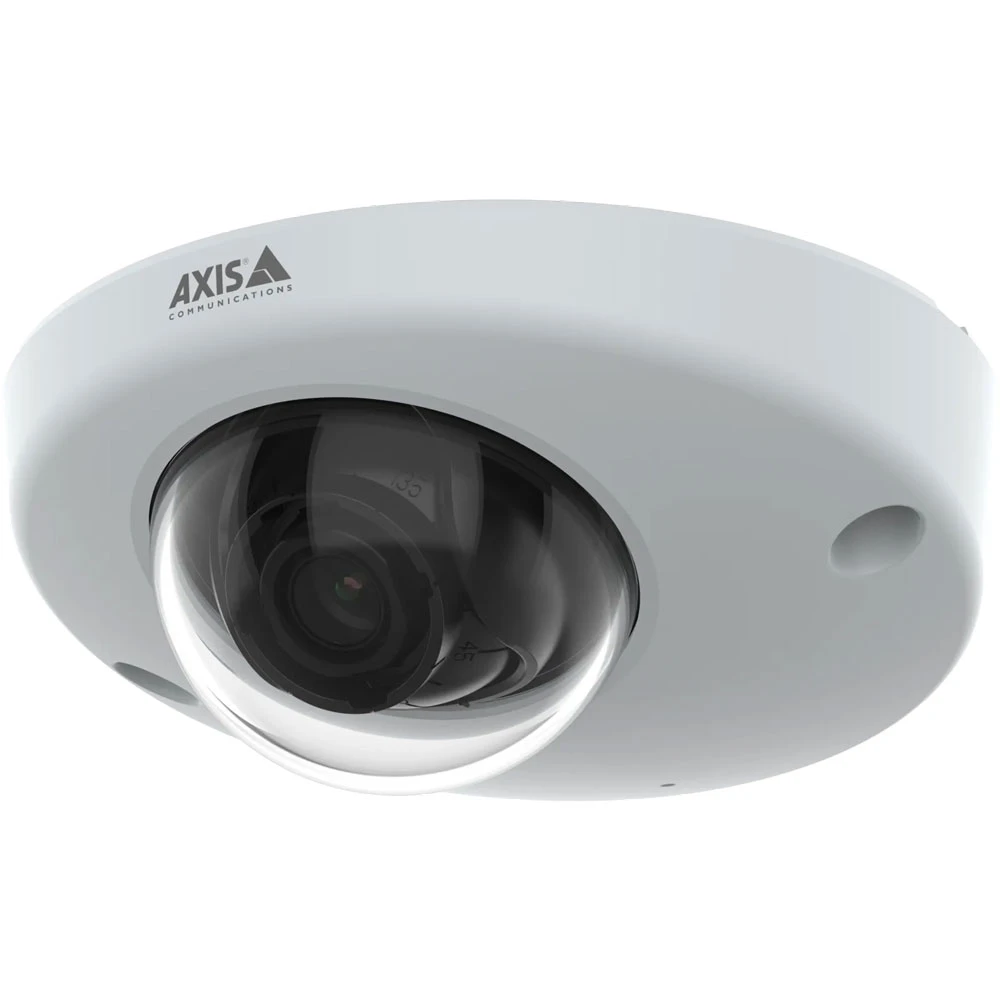

Axis P3945-R 3.6 mm 2 MP Indoor Onboard IP Camera - 03377-001

Axis P3945-R is built for installation in trains, trams, trolleys, and similar moving vehicles. This compact IP camera delivers HD security video: 1080p Full HD (2 MP) resolution at up to 60 fps, perfect for taking detailed evidence in fast-movement environments. This model of P3945-R has a 3.6 mm lens. P3945-R has a built-in microphone, which lets you take audio evidence on top of video — a second layer of security. The camera complies with numerous transportation industry standards like EN 50155 and EN 45545; it also meets numerous durability standards like IP66/67 and IK10.

P3945-R is a powerful, cutting-edge camera that improves video performance with technologies like Lightfinder 2.0, which reproduces colors with exceptional accuracy even in extreme low-light, and Forensic WDR, which retains an amazing amount of detail in high-contrast lighting situations. The camera also has pre-configured scene profiles for you to fine-tune the image quality as easily as possible: forensic, vivid, traffic overview. Axis Edge Vault — a hardware-based cybersecurity platform that integrates secure key storage, secure boot, video tampering detection, and more — protects the camera. Record video locally using a microSD card. P3945-R has the same form-factor, backplate, and accessories as earlier Axis onboard camera models, making it simple to upgrade and improve security on trains.

Note: Axis P3945-R is available with either a 2.8 mm or 3.6 mm lens. This model, Axis 03377-001, comes with a 3.6 mm lens.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3945-R M12 3.6 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 2 MP (1920 x 1080 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (without WDR)
• Video Compression: H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.6 mm, f/2.0
• Field of View:
• Horizontal: 83°
• Vertical: 44°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• M12: female, rugged, D-coded with rotatable coupling nut
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis P3945-R M12 3.6 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis P3945-R Documentation:

• Axis P3945-R Datasheet
• Axis P3945-R Installation Guide
