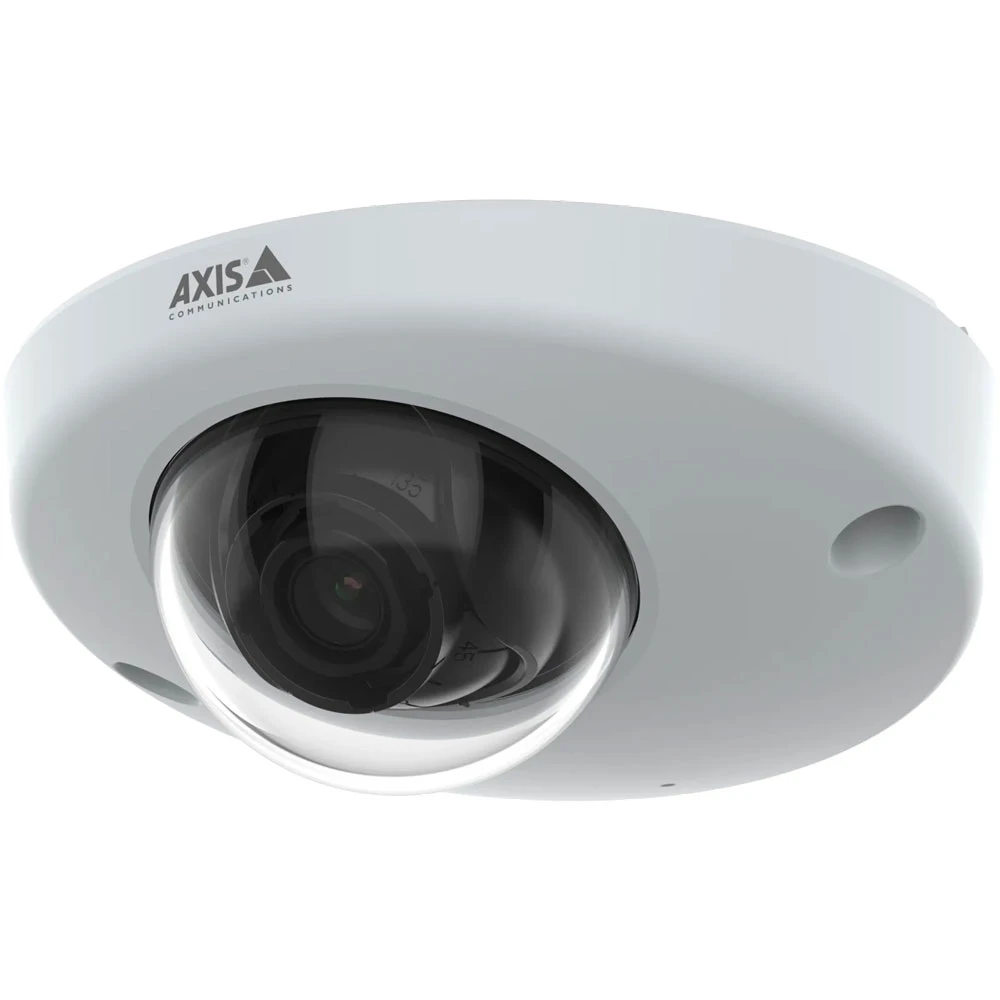

Axis P3947-R RJ45 2.8 mm 5 MP Indoor Onboard IP Camera - 03378-001

Axis P3947-R provides a simple, highly effective solution for HD camera surveillance in trains, trams, and similar vehicles and rolling stock. Intended for indoor installation, P3947-R takes 5 MP video — better than twice the resolution of 1080p Full HD cameras. This model has a wide-angle 2.8 mm lens and RJ45 connector. P3947-R can take 5 MP video at 30 fps; for fast-movement scenarios, it can take up to 1080p Full HD video at 60 fps. The camera has a built-in microphone for audio pickup — an extra layer of security. P3947-R complies with transportation industry regulations like EN 50155 and EN 45545, and meets numerous durability standards, including the IP66/67 and IK10 Ratings.

P3947-R is a powerful, AI-enhanced camera. Lightfinder 2.0 delivers true colors in extreme low-light and Forensic WDR retains vital detail in high-contrast lighting scenarios. Axis has developed a range of scene profiles to let you easily adjust image quality to suit the specific use-case, including forensic, vivid, and traffic overview. Axis Edge Vault, a hardware-based cybersecurity platform, protects the camera; it includes FIPS 140-3 Level 3 certified secure key storage and more. P3947-R supports in-camera recording using a microSD card. It matches earlier Axis onboard cameras in form-factor, backplate, and accessories, so it is simple to upgrade to this improved model with integrated audio and more.

Note: Axis P3947-R is available in four variants: with either a 2.8 mm or 3.6 mm lens, and with either an RJ45 or M12 connector. This model, Axis 03378-001, has a 2.8 mm lens and RJ45 connector.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3947-R RJ45 2.8 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 5 MP (2560 x 1440 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (1920 x 1080 px resolution without WDR)
• Video Compression: H.264 (AVC) Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 2.8 mm, f/2.0
• Field of View:
• Horizontal: 99°
• Vertical: 74°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• RJ45: 10/100 PoE
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis P3947-R RJ45 2.8 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis P3947-R Documentation:

• Axis P3947-R Datasheet
• Axis P3947-R Installation Guide
• Axis P3947-R Dimension Drawing
