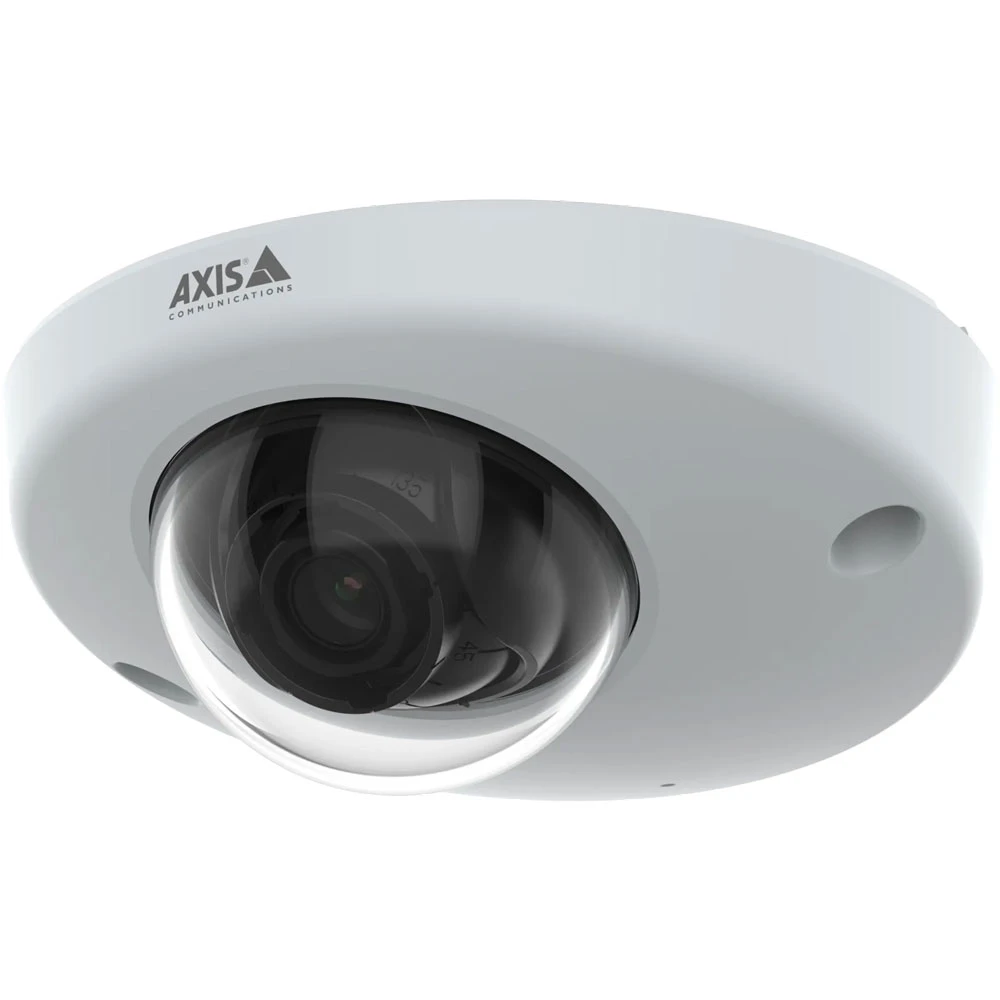

Axis P3947-R RJ45 3.6 mm 5 MP Indoor Onboard IP Camera - 03379-001

Axis P3947-R is a powerful IP camera for HD video surveillance in trains, trams, and similar vehicles and rolling stock. Designed for indoor installation, P3947-R takes video at up to 5 MP video — better than twice the resolution of 1080p Full HD. This model of P3947-R has a 3.6 mm lens and RJ45 connector. P3947-R is a versatile solution, taking 5 MP video at 30 fps, while supporting 60 fps video at up to 1080p Full HD resolution for fast-movement scenarios. Better yet, it offers a second layer of security by having a built-in microphone, helping to improve the usability of the surveillance material. P3947-R is compliant with transportation industry regulations like EN 50155 and EN 45545. It is built for durability: IP66/67 and IK10 Rated.

P3947-R is AI-powered, full of cutting-edge features to improve the quality of your video. These features include Lightfinder 2.0, which delivers true colors in extreme low-light, and Forensic WDR, which keeps vital detail in high-contrast lighting scenarios that otherwise would be lost. Choose from scene profiles, carefully developed by Axis, to effortlessly adjust image quality based on the use-case: forensic, vivid, traffic overview. Axis Edge Vault, a hardware-based cybersecurity platform, protects your security investment with FIPS 140-3 Level 3 certified secure key storage and much more. Record video in camera with a microSD card. P3947-R matches other Axis onboard cameras in form-factor, backplate, and accessories, making it ultra-easy to upgrade.

Note: Axis P3947-R is available in four variants: with either a 2.8 mm or 3.6 mm lens, and with either an RJ45 or M12 connector. This model, Axis 03379-001, has a 3.6 mm lens and RJ45 connector.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3947-R RJ45 3.6 mm Quick Specs:

• System on a Chip (SoC): CV75
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 5 MP (2560 x 1440 px)
• Frame Rate: up to 30 fps (with WDR); up to 60 fps (1920 x 1080 px resolution without WDR)
• Video Compression: H.264 (AVC) Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.6 mm, f/2.0
• Field of View:
• Horizontal: 83°
• Vertical: 60°
• Camera Adjustment:
• Pan: ±30°
• Tilt: 0° to 90°
• Rotation: -179° to 180°
• Minimum Illumination:
• Color: 0.16 lux
• Microphone: built-in microphone (can be disabled)
• Hardware Interfaces:
• RJ45: 10/100 PoE
• Power: 802.3af Type 1 Class 2 PoE (typical 3.55 W; max. 4.42 W)
• Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature Range: -22°F to 131°F
• Durability Ratings: IP66/67, IK10, NEMA 4X

Axis P3947-R RJ45 3.6 mm Dome Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Lens Tool

Axis P3947-R Documentation:

• Axis P3947-R Datasheet
• Axis P3947-R Installation Guide
• Axis P3947-R Dimension Drawing
